SIMPLIS Technologies Announces the Release of SIMetrix/SIMPLIS 8.2

SIMPLIS Technologies is pleased to announce that we have released version 8.2 of SIMetrix/SIMPLIS.  Below is the breakdown of the major changes.

New Features for Both SIMetrix and SIMPLIS

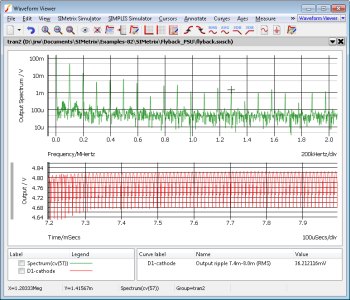

New Waveform Viewer

The waveform viewer in version 8.2 is completely new and has been rewritten from the ground up.

The new viewer remains compatible with previous versions but has many new features, higher performance, and improved graphics.

More information

New waveform viewer
Simulator: SIMetrix and SIMPLIS
Required Version: Classic, Pro, or Elite

Multi-step Probing

The arbitrary fixed probe now has the ability to plot performance analyses and Monte Carlo histograms.

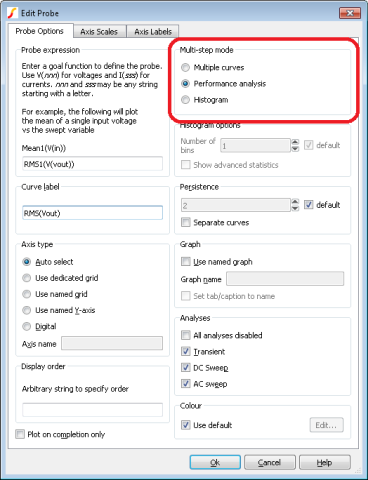

Arbitrary probe multi-step options
Simulator: SIMetrix and SIMPLIS
Required Version: Classic, Pro, or Elite

Component Enable/Disable

Parts placed on a schematic may be disabled without deleting. This leaves the part visible in the schematic but non-functional. Any part can be disabled, including terminals, probes and ground connectors.

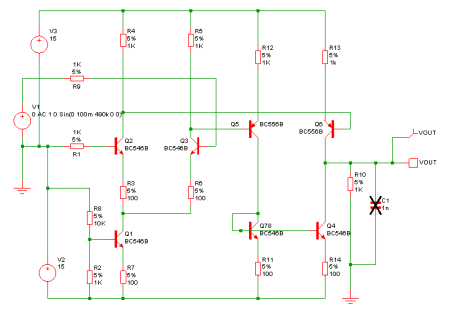

Component enable/disable
Simulator: SIMetrix and SIMPLIS
Required Version: Classic, Pro, or Elite

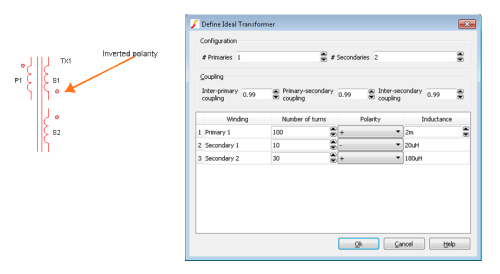

Transformer GUI

The dialog boxes used to define all types of transformers, including Ideal Transformers, Ideal DC Transformers (preferred for SIMPLIS) and Saturable Transformers (for SIMetrix) have been improved. Winding polarity is now supported and the winding specification is now a list which is easier to use.

Transformer symbol and dialog
Simulator: SIMetrix and SIMPLIS
Required Version: Classic, Pro, or Elite

Shift Reference

There may be a case where you have waveform data that does not start at x equals to zero. For example, you have imported oscilloscope waveforms where the time starts at a negative time. Three options exist to shift the waveform in the x-axis (time in the example mentioned). This function is best used on data with a linear x-axis.

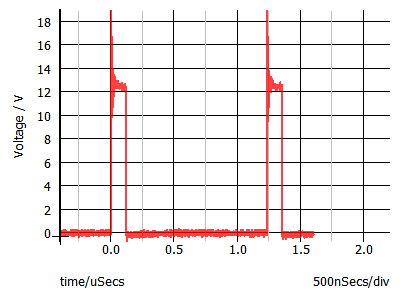

Shifting Curve
Simulator: SIMetrix and SIMPLIS
Required Version: Classic, Pro, or Elite

Piece-Wise Linear Curve Fit

A new dialog has been added to allow you to quickly obtain a PWL approximation of a curve. Currently, there exists a generic curve fit option and three specialized options for the following device characteristics:

  • Charge vs. Voltage of a capacitor
  • Flux-Linkage vs. Current of an inductor
  • Current vs. Voltage of a diode

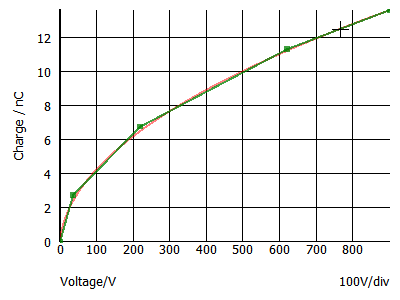

PWL curve fitting
Simulator: SIMetrix and SIMPLIS
Required Version: Classic, Pro, or Elite

DVM Enhancements

Changes to the DVM module include:

  • Added a Monte Carlo Testplan that utilizes the DVM sensitivity tolerance file.
  • Added Multi-Step and Monte Carlo built-in Testplans. Simplifies the transitioning of your non-DVM schematic to a DVM-enabled schematic.
  • Updated the built-in Efficiency Testplan to use Multi-Step. This can exploit the Multi-Core capabilities of Pro and Elite licenses.
  • Added a utility to include probes in DVM reports.

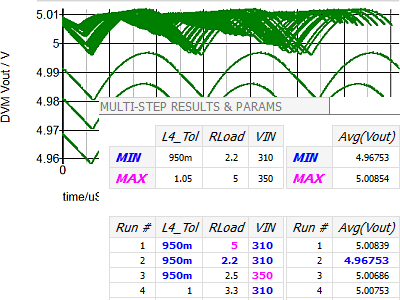

DVM waveforms
Simulator: SIMetrix and SIMPLIS
Required Version: Classic, Pro, or Elite

New Features for the SIMPLIS Simulator

Simulation Health Report

Helps diagnose common auto-detectable simulation errors and warnings. When enabled, if you encounter an error or warning that has a recommended solution or suggestion, a Health Report will be displayed.

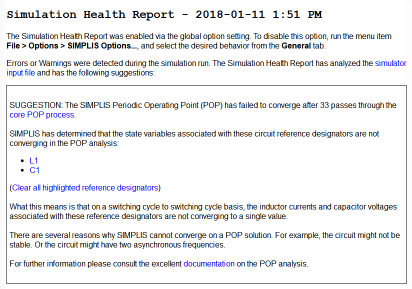

Simulation health report
Simulator: SIMPLIS only
Required Version: Classic, Pro, or Elite

Pole-Zero Entry Dialog

Enter the Poles and Zeros of your S-Domain Transfer Function instead of the coefficients. The poles and zeros are entered in radians per second (ω); however, by setting the Frequency Scale Factor to 2*π, the entries can be made in Hertz. Depending on the order of the filter, the poles and zeros can be real or complex. The poles and zeros can be located on the left-half plane or the right-half plane.

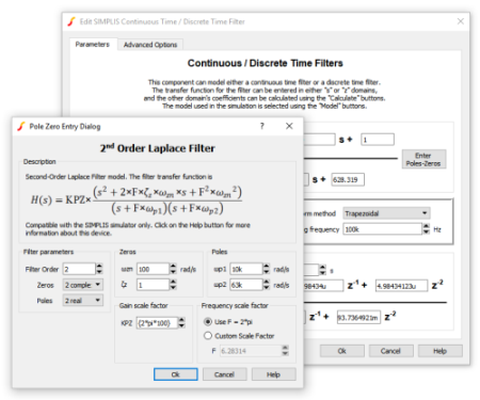

SIMPLIS filter Pole-Zero Entry
Simulator: SIMPLIS only
Required Version: Classic, Pro, or Elite

See the full list in the Change Log.

How to get version 8.20

For those interested in evaluating SIMetrix/SIMPLIS 8.20, please head to the Evaluation page and follow the directions to obtain a trial license.

For those who are up to date on their maintenance but do not possess the credentials for downloading the new version, please contact us at support@simplis.com.

About SIMPLIS Technologies

Simplis Technologies, Inc., headquartered in Portland, Oregon, is the technology leader in simulation software for the power electronics industry. SIMPLIS is the leading simulation engine for switched mode power supply design and has been rapidly adopted by leading OEM, power supply, and IC Controller manufacturers in recent years. It has become the standard for power supply system simulation and new product definition analysis.
