» DVM Test Report: Steady-State|Steady-State|Vin Nominal|40%

Test Details
Schematic 8.1_Sync Buck Efficiency.sxsch
Test Steady-State|Steady-State|Vin Nominal|40%
Date / Time 12/10/2015 5:59 PM
Report Directory add_power_losses\Steady-State\Steady-State\VinNominal\40%
Log File report.txt
Screenshot schematic.png
Status PASS
Simulator simplis
Deck input.deck
Init input.deck.init
Measured Scalar Values
Efficiency 96.6093%
Efficiency_nom 96.6093%
IGate_Drive
AVG
11.9519m
MIN
-540.891p
MAX
4.76243
RMS
184.139m
PK2PK
4.76243
ILine
AVG
2.93528
MIN
88.019m
MAX
6.77346
RMS
4.02079
PK2PK
6.68544
ILOAD
AVG
5.64396
MIN
5.6095
MAX
5.67848
RMS
5.64399
PK2PK
68.9758m
ILOAD_Nom 5.64396
Power(Gate_Drive) 59.7256m
Power(Line) 14.6602
Power(LOAD) 14.2208
Power(Q1)
AVG
157.918m
Power(Q2)
AVG
73.1043m
Power_Gate_Drive_Nom 59.7256m
Power_Line_Nom 14.6602
Power_Load_Nom 14.2208
Power_Q1_Nom 157.918m
Power_Q2_Nom 73.1043m
Power_Sum_Of_All_Sources 14.72
VGate_Drive
AVG
4.99999
MIN
4.99524
MAX
5
RMS
4.99999
PK2PK
4.76243m
VLine
AVG
4.99706
MIN
4.99323
MAX
4.99991
RMS
4.99707
PK2PK
6.68544m
VLOAD
AVG
2.51963
MIN
2.50424
MAX
2.53504
RMS
2.51964
PK2PK
30.7928m
Measured Spec Values
Max_VLOAD PASS: Max. Output1 Voltage (2.53504) is less than or equal to Max. Output1 Voltage Spec (2.625)
Min_VLOAD PASS: Min. Output1 Voltage (2.50424) is greater than or equal to Min. Output1 Voltage Spec (2.375)

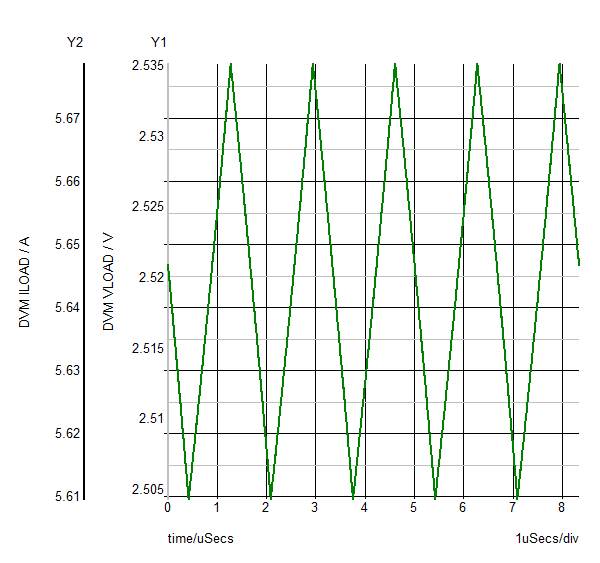

LOAD
VLOAD
ILOAD
SXGPH File simplis_pop8_453.sxgph

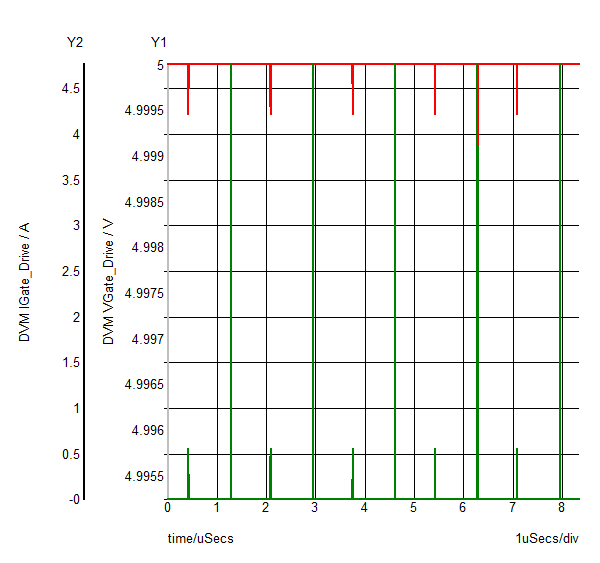

Gate_Drive
VGate_Drive
IGate_Drive
SXGPH File simplis_pop8_463.sxgph

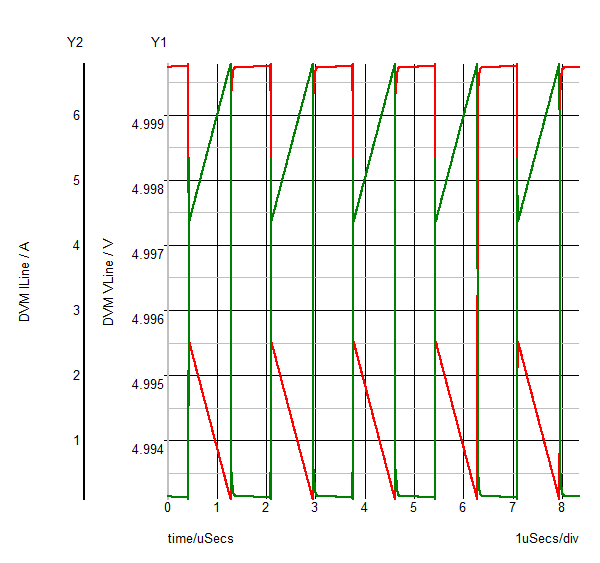

Line
VLine
ILine
SXGPH File simplis_pop8_458.sxgph

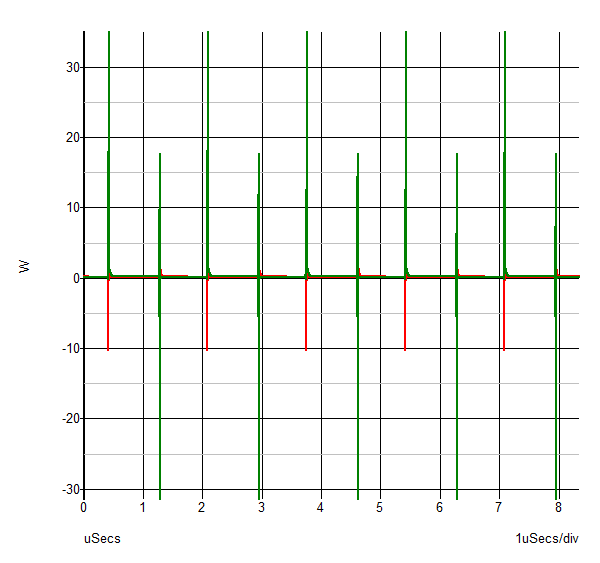

power
Power(Q1)
Power(Q2)
SXGPH File simplis_pop8_468.sxgph
Other SXGPH Files
SWITCHING#pop simplis_pop8_421.sxgph
DRIVE#pop simplis_pop8_426.sxgph
INPUT#pop simplis_pop8_432.sxgph
IC#pop simplis_pop8_448.sxgph
