» DVM Test Report: Efficiency and Loop Characterization|Vin Minimum|5% Load

Test Details
Schematic 8.2_LLC Closed Loop.sxsch
Test Efficiency and Loop Characterization|Vin Minimum|5% Load
Date / Time 12/10/2015 6:13 PM
Report Directory measure_loop_param\Efficiencyand Loop Characterization\Vin Minimum\5% Load
Log File report.txt

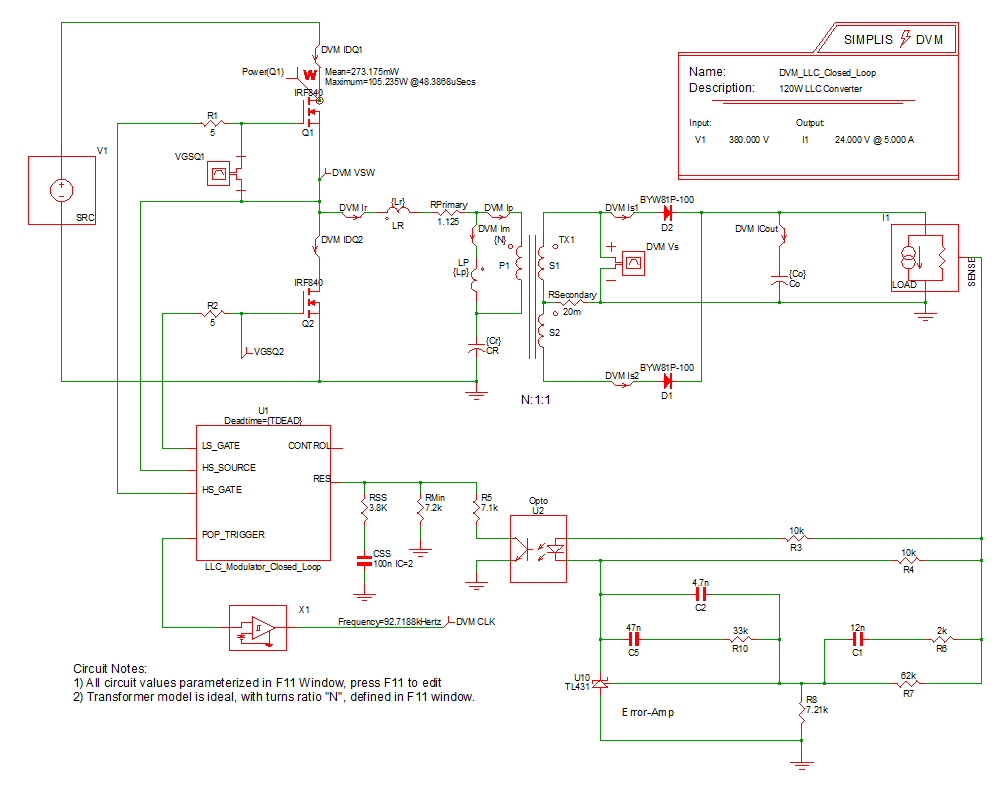

Screenshot schematic.png
Status PASS
Simulator simplis
Deck input.deck
Init input.deck.init
Measured Scalar Values
Efficiency 93.5266%
eta_min 93.5266%
Frequency(CLK) 81.7975k
gain_crossover_freq 838.986
gain_margin 28.712
gmargin_min 28.712
gxover_min 838.986
ILOAD
AVG
251.461m
MIN
251.432m
MAX
251.51m
RMS
251.461m
PK2PK
77.9008u
iload_min 251.461m
ISRC
AVG
18.0128m
MIN
-555.716m
MAX
576.704m
RMS
240.622m
PK2PK
1.13242
min_phase 97.9727
min_phase_freq 92.3644
phase_crossover_freq 38.3577k
phase_margin 116.172
pmargin_min 116.172
Power(LOAD) 6.05942
Power(SRC) 6.47882
sw_freq_min 81.7975k
VLOAD
AVG
24.0969
MIN
24.0943
MAX
24.1013
RMS
24.0969
PK2PK
6.99495m
VSRC
AVG
359.998
MIN
359.942
MAX
360.056
RMS
359.998
PK2PK
113.242m
Measured Spec Values
Max_VLOAD PASS: Max. Output1 Voltage (24.1013) is less than or equal to Max. Output1 Voltage Spec (25.2)
Min_VLOAD PASS: Min. Output1 Voltage (24.0943) is greater than or equal to Min. Output1 Voltage Spec (22.8)
min_gain_margin PASS: Gain Margin (28.712) is greater than Min. Gain Margin (12)
min_phase_margin PASS: Phase Margin (116.172) is greater than Min. Phase Margin (35)

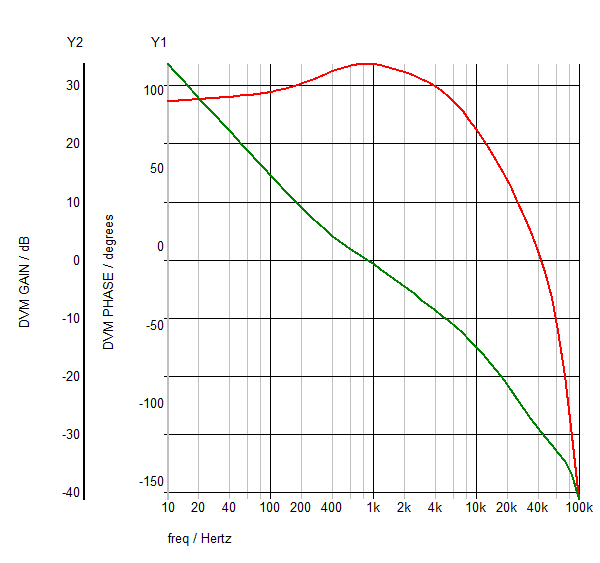

Bode Plot
GAIN
PHASE
SXGPH File simplis_ac29_1734.sxgph

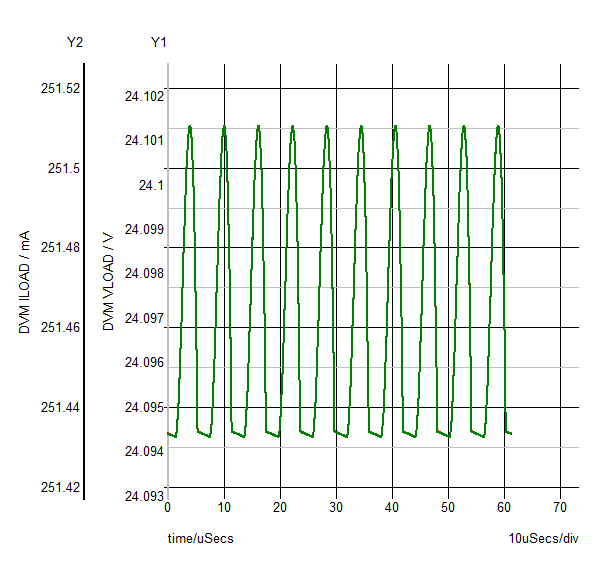

LOAD
VLOAD
ILOAD
SXGPH File simplis_pop29_1700.sxgph

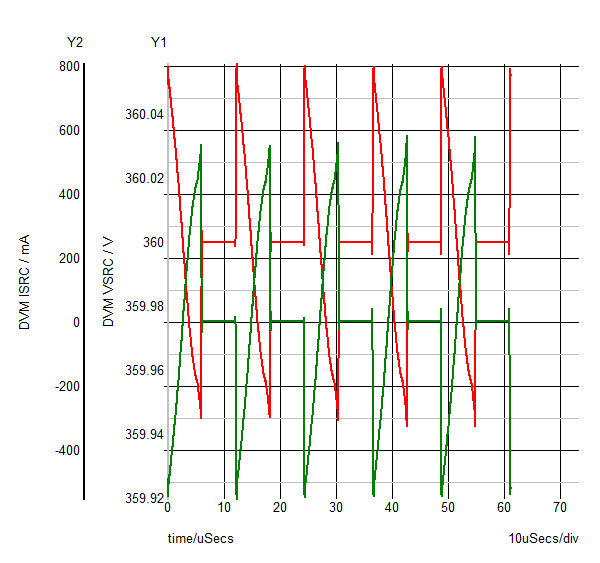

SRC
VSRC
ISRC
SXGPH File simplis_pop29_1690.sxgph

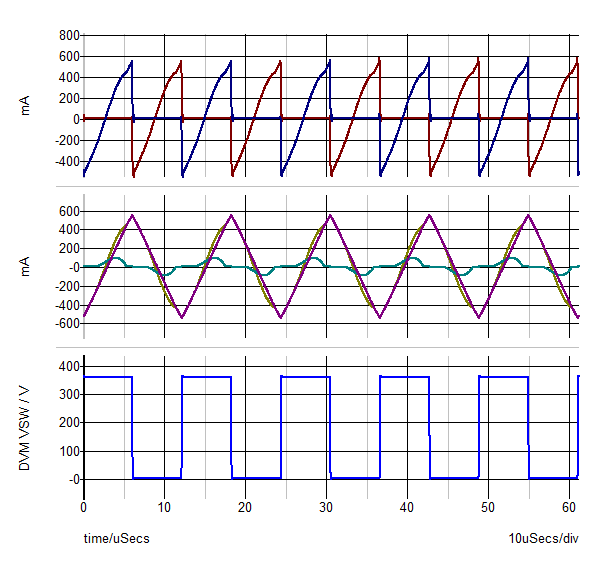

Primary
IDQ1
IDQ2
Im
Ip
Ir
VSW
SXGPH File simplis_pop29_1681.sxgph

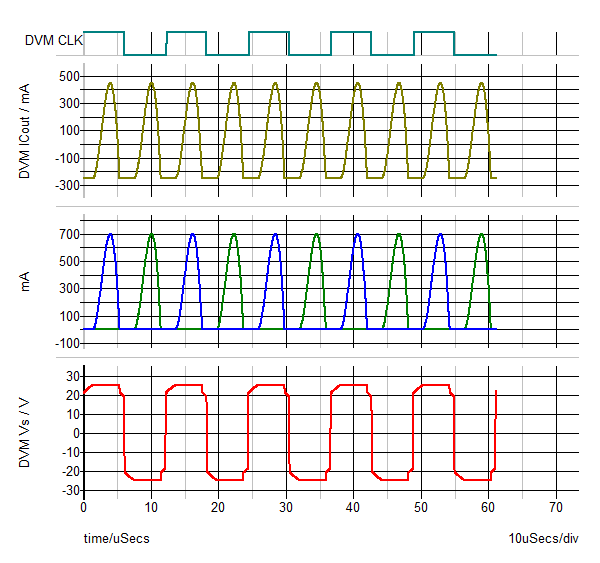

Secondary
CLK
ICout
Is1
Is2
Vs
SXGPH File simplis_pop29_1695.sxgph
Other SXGPH Files
default#1723#pop simplis_pop29_1723.sxgph
Modulator#pop simplis_pop29_1728.sxgph
