» DVM Test Report: Efficiency and Loop Characterization|Vin Minimum|50% Load

Test Details
Schematic 8.2_LLC Closed Loop.sxsch
Test Efficiency and Loop Characterization|Vin Minimum|50% Load
Date / Time 12/10/2015 6:15 PM
Report Directory measure_loop_param\Efficiencyand Loop Characterization\Vin Minimum\50% Load
Log File report.txt

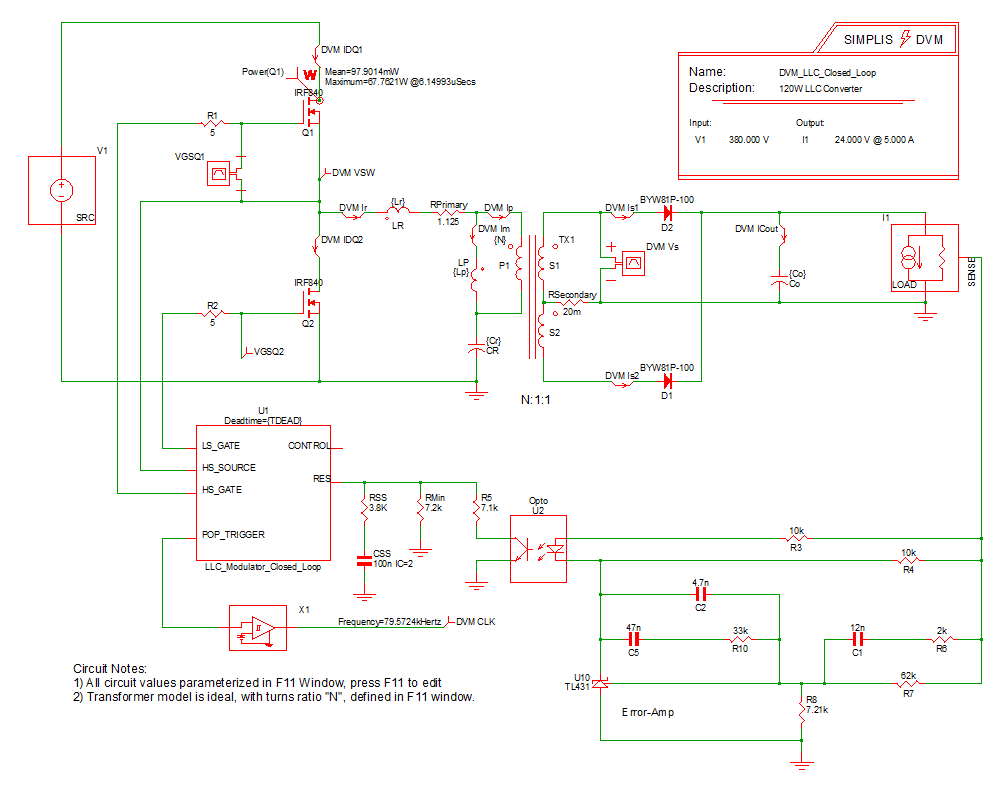

Screenshot schematic.png
Status PASS
Simulator simplis
Deck input.deck
Init input.deck.init
Measured Scalar Values
Efficiency 95.7087%
eta_min 95.7087%
Frequency(CLK) 79.2935k
gain_crossover_freq 4.73587k
gain_margin 23.3309
gmargin_min 23.3309
gxover_min 4.73587k
ILOAD
AVG
2.5099
MIN
2.50727
MAX
2.51192
RMS
2.5099
PK2PK
4.6436m
iload_min 2.5099
ISRC
AVG
175.531m
MIN
-567.682m
MAX
767.712m
RMS
385.656m
PK2PK
1.33539
min_phase 48.4238
min_phase_freq 4.73587k
phase_crossover_freq 23.6863k
phase_margin 48.2373
pmargin_min 48.2373
Power(LOAD) 60.4653
Power(SRC) 63.1764
sw_freq_min 79.2935k
VLOAD
AVG
24.0907
MIN
24.0657
MAX
24.11
RMS
24.0908
PK2PK
44.2884m
VSRC
AVG
359.982
MIN
359.923
MAX
360.057
RMS
359.982
PK2PK
133.539m
Measured Spec Values
Max_VLOAD PASS: Max. Output1 Voltage (24.11) is less than or equal to Max. Output1 Voltage Spec (25.2)
Min_VLOAD PASS: Min. Output1 Voltage (24.0657) is greater than or equal to Min. Output1 Voltage Spec (22.8)
min_gain_margin PASS: Gain Margin (23.3309) is greater than Min. Gain Margin (12)
min_phase_margin PASS: Phase Margin (48.2373) is greater than Min. Phase Margin (35)

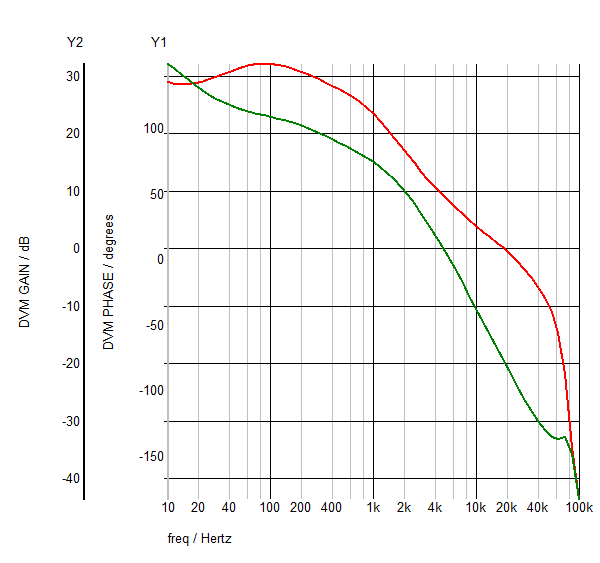

Bode Plot
GAIN
PHASE
SXGPH File simplis_ac37_2214.sxgph

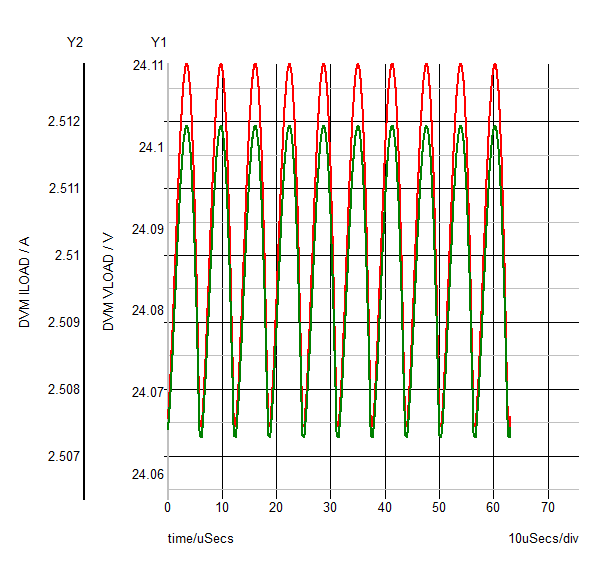

LOAD
VLOAD
ILOAD
SXGPH File simplis_pop37_2180.sxgph

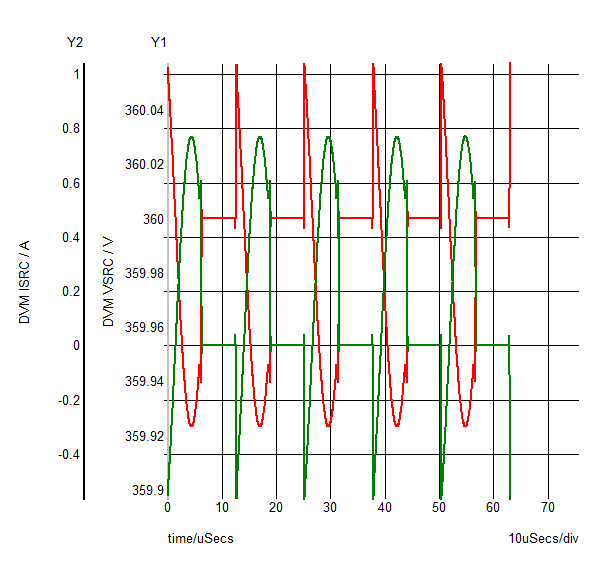

SRC
VSRC
ISRC
SXGPH File simplis_pop37_2170.sxgph

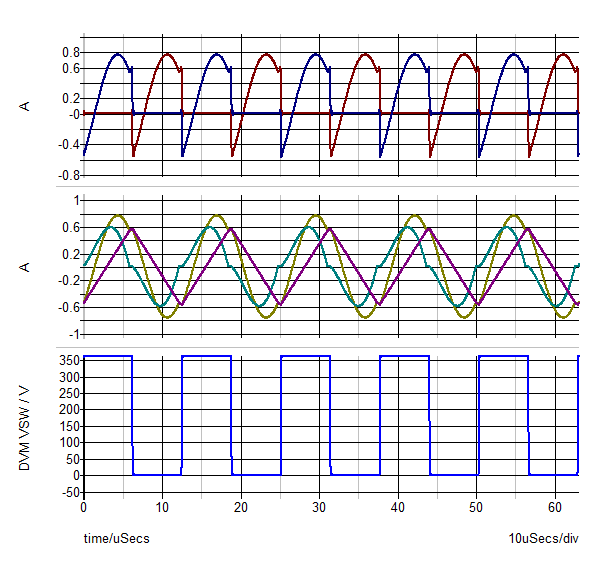

Primary
IDQ1
IDQ2
Im
Ip
Ir
VSW
SXGPH File simplis_pop37_2161.sxgph

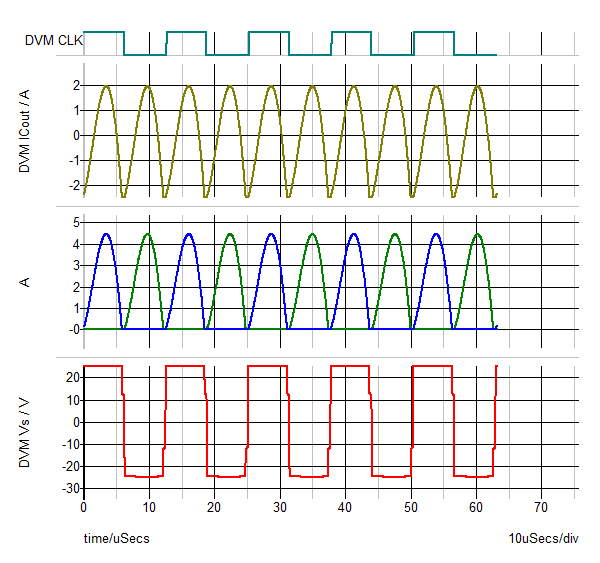

Secondary
CLK
ICout
Is1
Is2
Vs
SXGPH File simplis_pop37_2175.sxgph
Other SXGPH Files
default#2203#pop simplis_pop37_2203.sxgph
Modulator#pop simplis_pop37_2208.sxgph
