» DVM Test Report: VOUT=1.505V|Bode Plot|Vin Nominal|50% Load

Test Details

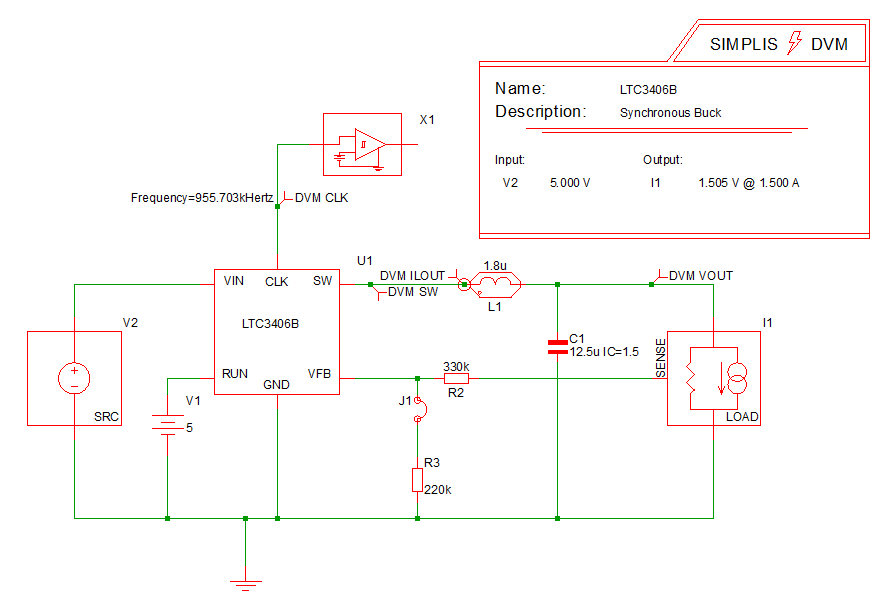

Schematic 6.3_LTC3406B - DVM ADVANCED.sxsch
Test VOUT=1.505V|Bode Plot|Vin Nominal|50% Load
Date / Time 12/10/2015 5:56 PM
Report Directory promote_graphs\VOUT=1.505V\BodePlot\Vin Nominal\50% Load
Log File report.txt
Screenshot schematic.png
Status PASS
Simulator simplis
Deck input.deck
Init input.deck.init
Measured Scalar Values
Efficiency 78.7659%
Frequency(CLK) 955.651k
gain_crossover_freq 20.8851k
gain_crossover_freq_nom 20.8851k
gain_margin 30.3822
gain_margin_nom 30.3822
ILOAD
AVG
750.312m
MIN
748.387m
MAX
751.945m
RMS
750.313m
PK2PK
3.55794m
ISRC
AVG
286.895m
MIN
423.445u
MAX
1.09563
RMS
482.345m
PK2PK
1.09521
min_phase 37.0236
min_phase_freq 20.8851k
phase_crossover_freq 398.963k
phase_margin 36.9686
phase_margin_nom 36.9686
Power(LOAD) 1.12969
Power(SRC) 1.43424
VLOAD
AVG
1.50562
MIN
1.50176
MAX
1.5089
RMS
1.50563
PK2PK
7.13956m
VSRC
AVG
4.99971
MIN
4.9989
MAX
5
RMS
4.99971
PK2PK
1.09521m
Measured Spec Values
Max_VLOAD PASS: Max. Output1 Voltage (1.5089) is less than or equal to Max. Output1 Voltage Spec (1.58025)
Min_VLOAD PASS: Min. Output1 Voltage (1.50176) is greater than or equal to Min. Output1 Voltage Spec (1.42975)
min_gain_margin PASS: Gain Margin (30.3822) is greater than Min. Gain Margin (12)
min_phase_margin PASS: Phase Margin (36.9686) is greater than Min. Phase Margin (35)
Bode Plot
GAIN
PHASE
SXGPH File simplis_ac2_78.sxgph
LOAD
VLOAD
ILOAD
SXGPH File simplis_pop2_61.sxgph

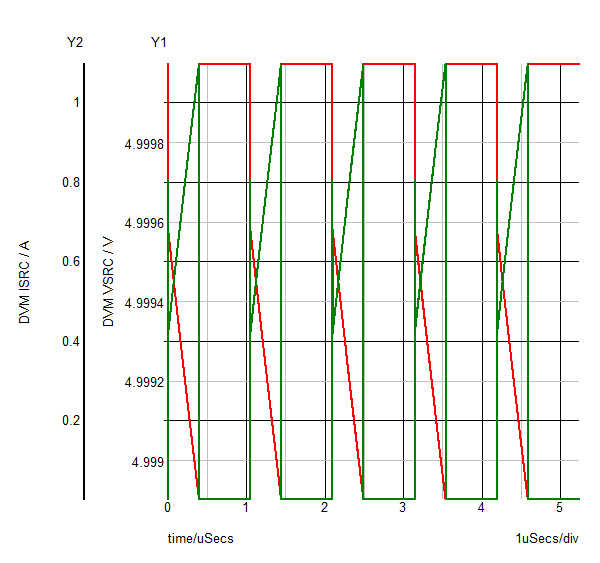

SRC
VSRC
ISRC
SXGPH File simplis_pop2_51.sxgph

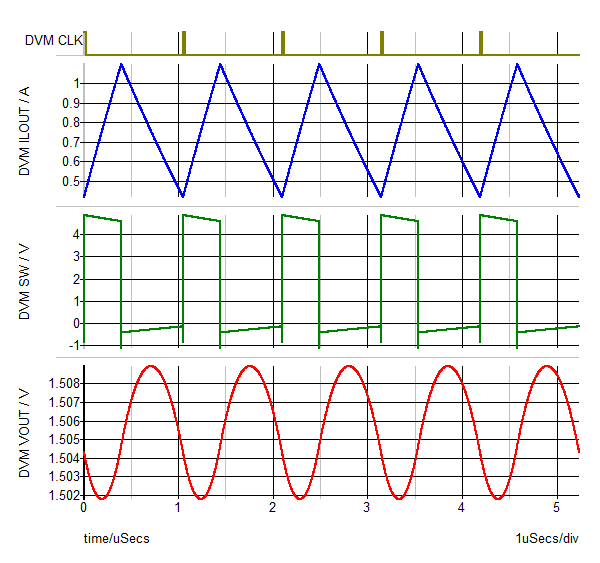

default
CLK
ILOUT
SW
VOUT
SXGPH File simplis_pop2_56.sxgph
Other SXGPH Files
clock#pop simplis_pop2_43.sxgph
