» SIMPLIS DVM Test Report Overview

Schematic 4.2_LTC3406B - DVM ADVANCED.sxsch
Testplan dvm_advanced.testplan
Original Testplan Filename 4.2_LTC3406B - DVM ADVANCED_efficiency.testplan
Date / Time 2024-04-24 4:25 PM
Report Directory DVM_REPORTS\2024-04-24-4_24_PM
Log File dvm_advanced.log
# of Tests Run 2 of 2 (1 Passed, 1 Skipped)
Total Time 1m 30s
Design Specifications
Circuit Name LTC3406B
Description Synchronous Buck
Input 1 5.000 V (4.5 V to 5.5 V)
Output 1 1.505 V (±5%) @ 1.5 A
Switching Frequency 955kHz
Excel-compatible Results
Scalar Results dvm_advanced_table_scalars.txt
Spec Results dvm_advanced_table_specs.txt
Statistic Results dvm_advanced_table_statistics.txt
Statistic Specs dvm_advanced_table_statspecs.txt

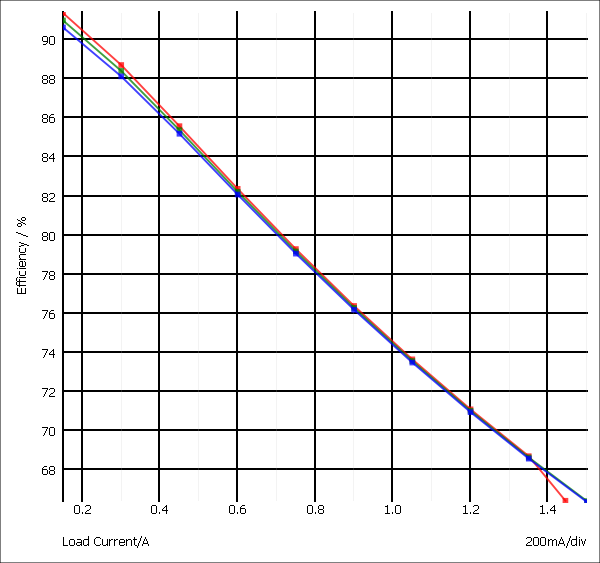

Overview Graphs
Vin Max
Vin Min
Vin Nom
SXGPH File simplis_pop1_320.sxgph
Source Test Efficiency|Generate Efficiency Curves
Test 1 of 2top ▲
Test Label Efficiency|Run Multi-Step Efficiency Simulation
Simulator simplis
Test Report Efficiency\Run Multi-Step Efficiency Simulation\report.txt.html
Status PASS
Test Time 1m 24s
Test 2 of 2top ▲
Test Label Efficiency|Generate Efficiency Curves
Simulator N/A
Test Report Efficiency\Generate Efficiency Curves\report.txt.html
Status SKIP
Test Time 4s
