» DVM Test Report: Post-Process 2 Scalars
| Test Details | |
| Schematic | 6.3_LTC3406B - DVM ADVANCED.sxsch |
| Test | Post-Process 2 Scalars |
| Date / Time | 12/10/2015 5:57 PM |
| Report Directory | scripting\Post-Process2 Scalars |
| Log File | report.txt |

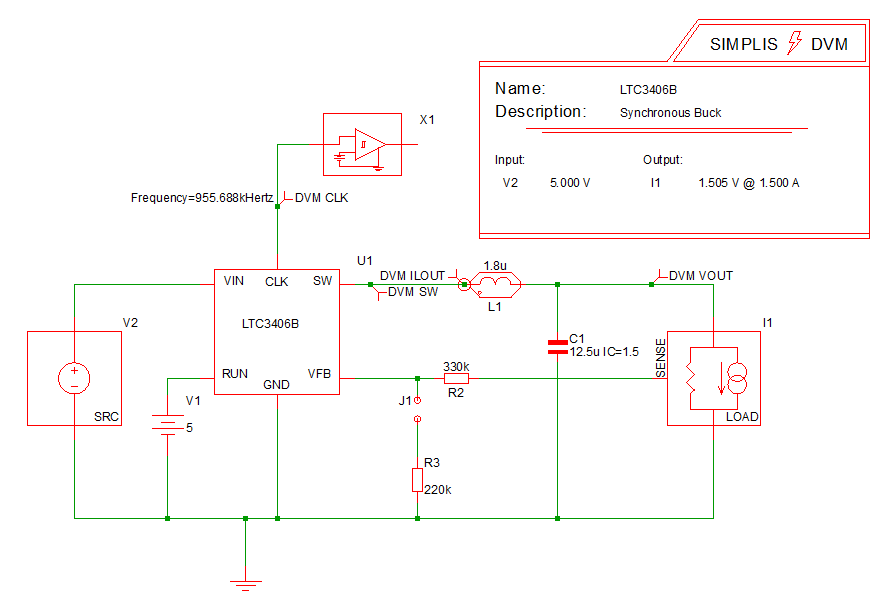

| Screenshot | schematic.png |
| Status | RUN |
| Simulator | simplis |
| Deck | input.deck |
| Init | input.deck.init |
| Measured Scalar Values | |
| Frequency(CLK) | 955.688k |
| gain_crossover_freq | 18.3383k |
| gain_margin | 33.7095 |
| ILOAD | AVG 603.439m MIN 600.632m MAX 605.224m RMS 603.441m PK2PK 4.59272m |
| ISRC | AVG 101.745m MIN 465.682u MAX 831.192m RMS 254.453m PK2PK 830.727m |
| min_phase | 54.3004 |
| min_phase_freq | 18.3383k |
| my_2pi | 6.2831853 |
| my_pi | 3.1415927 |
| phase_crossover_freq | 346.054k |
| phase_margin | 54.2129 |
| VLOAD | AVG 605.449m MIN 602.632m MAX 607.24m RMS 605.451m PK2PK 4.608m |
| VSRC | AVG 5.4999 MIN 5.49917 MAX 5.5 RMS 5.4999 PK2PK 830.727u |

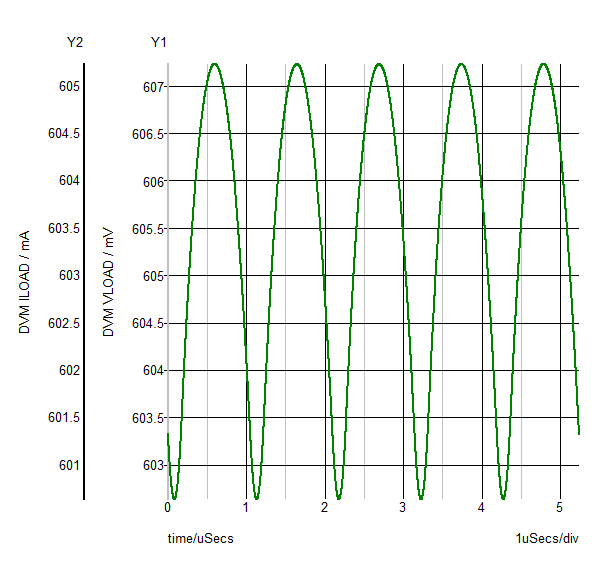

 LOAD
VLOAD
ILOAD
|
|
| SXGPH File | simplis_pop3_103.sxgph |

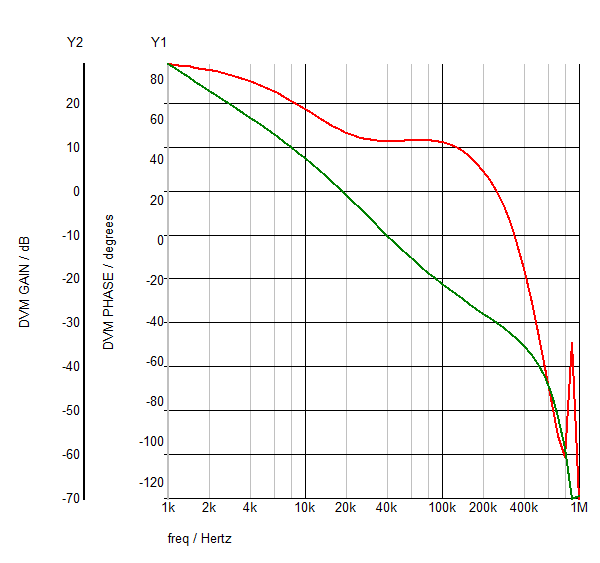

 Bode Plot
GAIN
PHASE
|
|
| SXGPH File | simplis_ac3_120.sxgph |

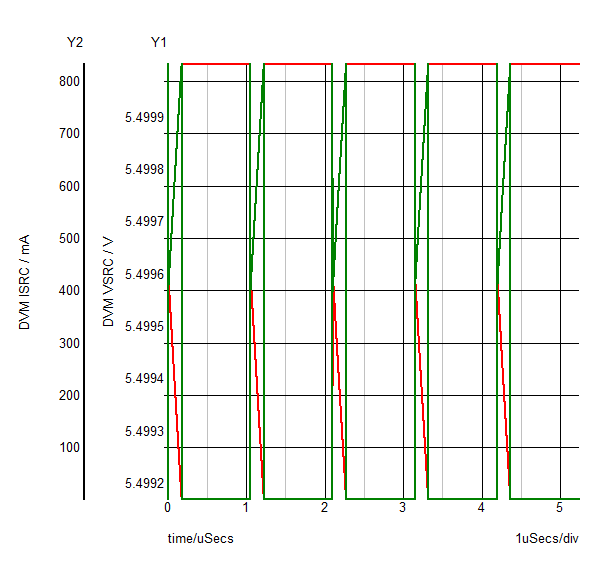

 SRC
ISRC
VSRC
|
|
| SXGPH File | simplis_pop3_93.sxgph |

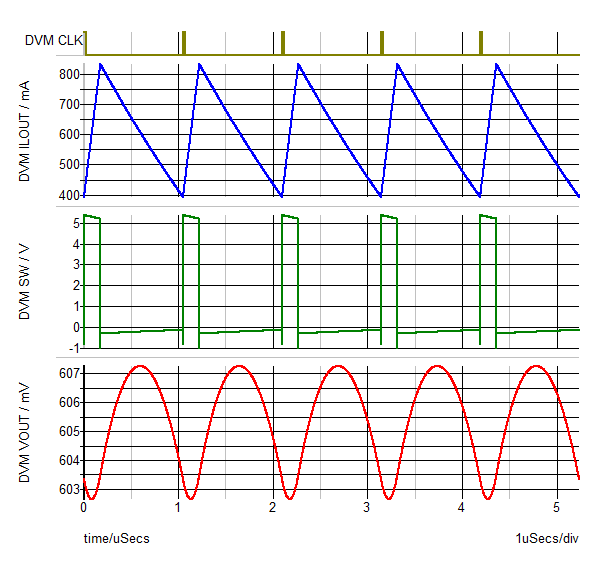

 default
CLK
ILOUT
SW
VOUT
|
|
| SXGPH File | simplis_pop3_98.sxgph |
| Other SXGPH Files | |
| clock#pop | simplis_pop3_85.sxgph |
