» DVM Test Report: VOUT=0.6V w NoCurves NoScalars NoSpecs|Bode Plot|Vin Maximum|Light Load

Test Details

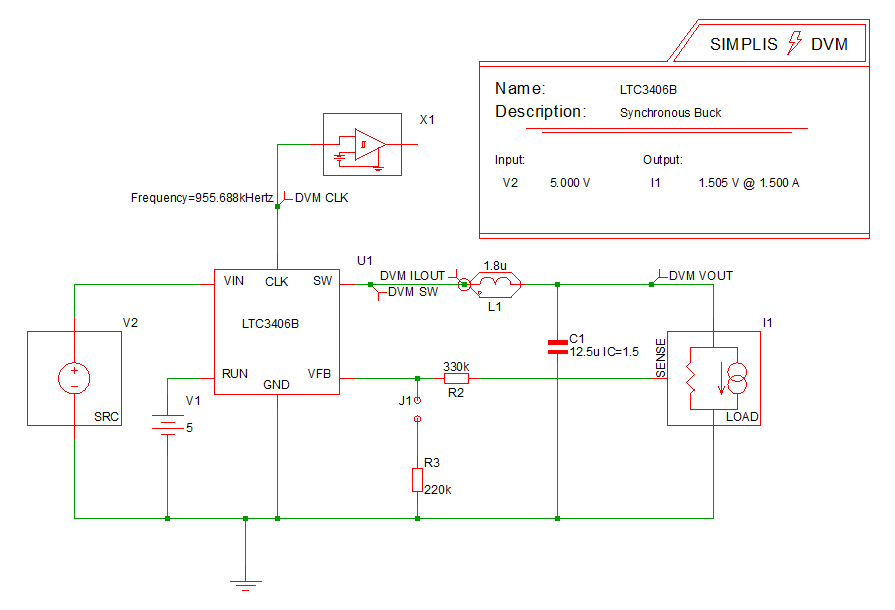

Schematic 6.3_LTC3406B - DVM ADVANCED.sxsch
Test VOUT=0.6V w NoCurves NoScalars NoSpecs|Bode Plot|Vin Maximum|Light Load
Date / Time 12/10/2015 5:52 PM
Report Directory suppress_spec_gen\VOUT=0.6Vw NoCurves NoScalars NoSpecs\Bode Plot\Vin Maximum\Light Load
Log File report.txt
Screenshot schematic.png
Status WARN
Simulator simplis
Deck input.deck
Init input.deck.init
Warning File input.deck.warn
****************************************
<<<<<<<< Error Message ID: 5019 >>>>>>>>

Periodic Operating-Pt Analysis:

    Unable to find a periodic operating
    point after 20 attempts.  Check your
    input file for errors.  A change in
    the initial condition may be necessary.

The voltages of the following capacitors and the
currents of the following inductors are the leading
contributing factors to the non-convergence of the
POP analysis.  Inspecting these voltages/currents
from the "POP progress output" may show the clues to
the non-convergence.

    C1,  X$U1.X$U3.C2,  X$U1.X$U3.C1



Error File input.deck.err
****************************************
<<<<<<<< Error Message ID: 5039 >>>>>>>>

The periodic operating point (POP) analysis
has failed to converge.  AC analysis will
not be performed.




Measured Scalar Values
Efficiency 2263.39%
Power(LOAD) 57.9823m
Power(SRC) 2.56175m
VLOAD
AVG
1.31721
MIN
1.14991
MAX
1.5
RMS
1.32108
PK2PK
350.09m
LOAD
VLOAD

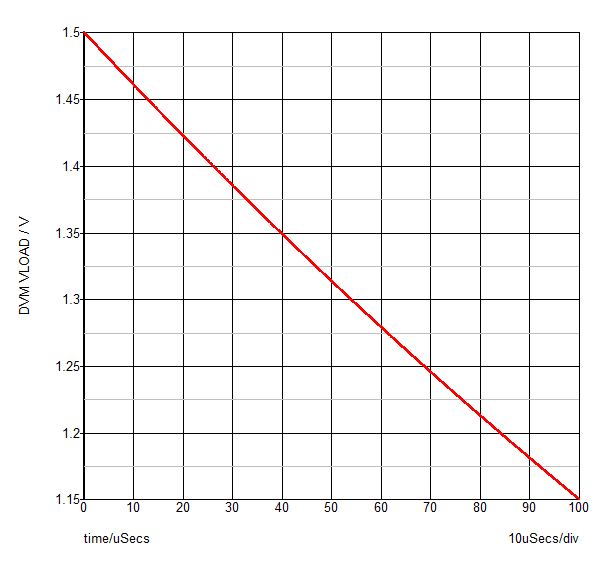

SXGPH File simplis_pop7_264.sxgph
SRC
VSRC
ISRC

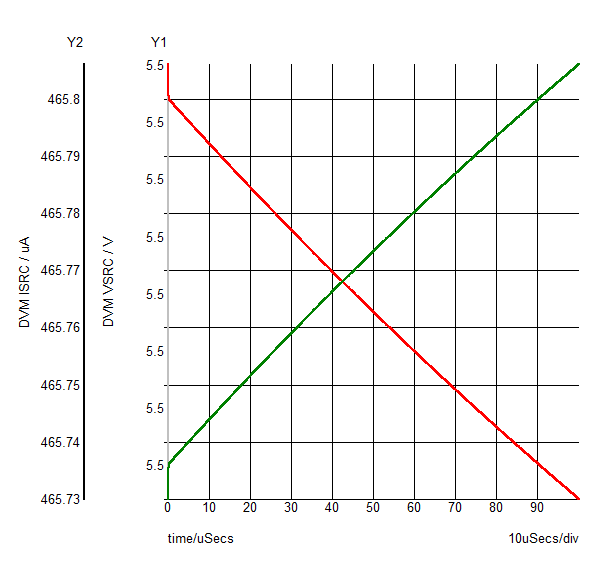

SXGPH File simplis_pop7_254.sxgph
default
CLK
ILOUT
SW

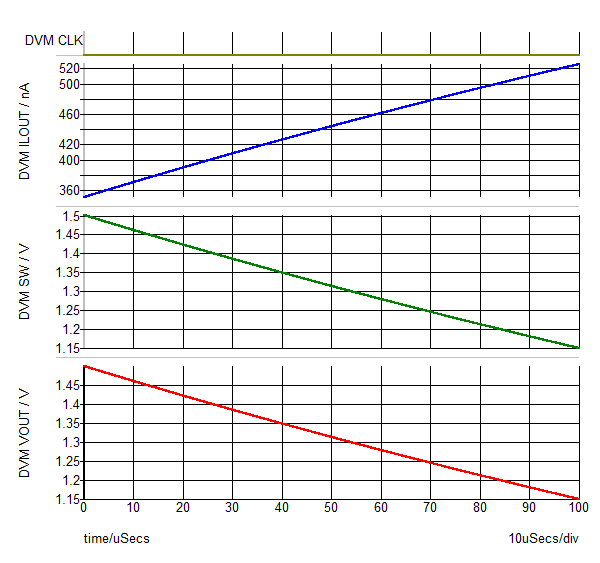

VOUT
SXGPH File simplis_pop7_259.sxgph
Other SXGPH Files
clock#pop simplis_pop7_246.sxgph
