DC Current Load

The DC Current Load subcircuit models a constant current load. Unlike the Resistive Load, the DC Current Load uses a pure current source.

In this topic:

  DVM Information Power Supply (Non-DVM) Information
Model Name DC Current Load
Simulator
Parts Selector
Menu Location
  • DVM > Loads > DVM Output Load - 2 Terminal
  • DVM > Loads > DVM Output Load - 3 Terminal
  • DVM > Loads > DVM Output Load - 4 Terminal
Power Supply Loads > Power Supply Load ( DC Current, Pulse, Bode, Zout... )
Symbol Library SIMPLIS_DVM_ADVANCED.sxslb power_supply_source_and_loads.sxslb
Model File SIMPLIS_DVM_ADVANCED.lb power_supply_source_and_loads.lb
Subcircuit Name
  • SIMPLIS_DVM_ADVANCED_LOAD_2T_DC
  • SIMPLIS_DVM_ADVANCED_LOAD_3T_DC
  • SIMPLIS_DVM_ADVANCED_LOAD_4T_DC
POWER_SUPPLY_LOAD_DC
Symbols

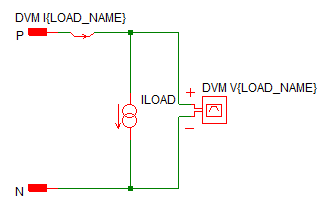

Schematic - 2 Terminal
Note: Power Supply probes will not have the "DVM" prefix.

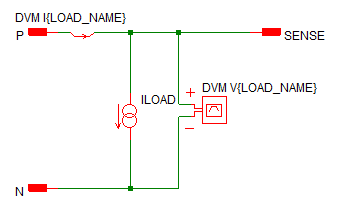

Schematic - 3 Terminal
Note: Power Supply probes will not have the "DVM" prefix.

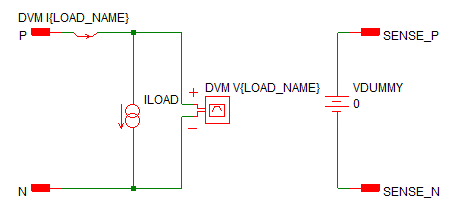

Schematic - 4 Terminal
Note: Power Supply probes will not have the "DVM" prefix.

Parameters

The following table explains the relevant parameters.

Parameter Name Default Data Type Range Units Parameter Description
LOAD_NAME LOAD String n/a n/a Name of the DVM load. This name cannot contain spaces.
DC_CURRENT 500m Real Min: 0 A Sets the load current of the load.

DVM Testplan Entry

To set any managed DVM load to a DC Load subcircuit, place a Dc() testplan entry in the Load column.

The Dc() testplan entry has the following syntax with the arguments explained in the table below.

Dc(REF, DC_CURRENT)
Argument Range Description
REF n/a The actual reference designator of the DVM load or the more generic syntax of OUTPUT:n where n is an integer indicating a position in the list of DVM loads
DC_CURRENT min: 0 The DC current for the load.

Converting between DVM and Power Supply Loads

To change a Power Supply load to a DVM load, right click the symbol to bring up the context menu, and select the menu option: Upgrade to DVM Source/Load

To change a DVM load to a Power Supply load, right click the symbol to bring up the context menu, and select the menu option: Downgrade to SIMetrix/SIMPLIS Source/Load
