G.1 The PDN Simulation Challenge

In high-performance microprocessor applications, the power distribution network (PDN) refers to the network of components, interconnections, and printed circuit board paths used to distribute power from a switching power supply source to the input voltage pins of the microprocessor load. The proper design of the PDN is vital to ensuring that the microprocessor load receives the correct voltage and current over all operating conditions, including during current steps on the order of 1000 A and slew rates on the order of 1 A/ns.

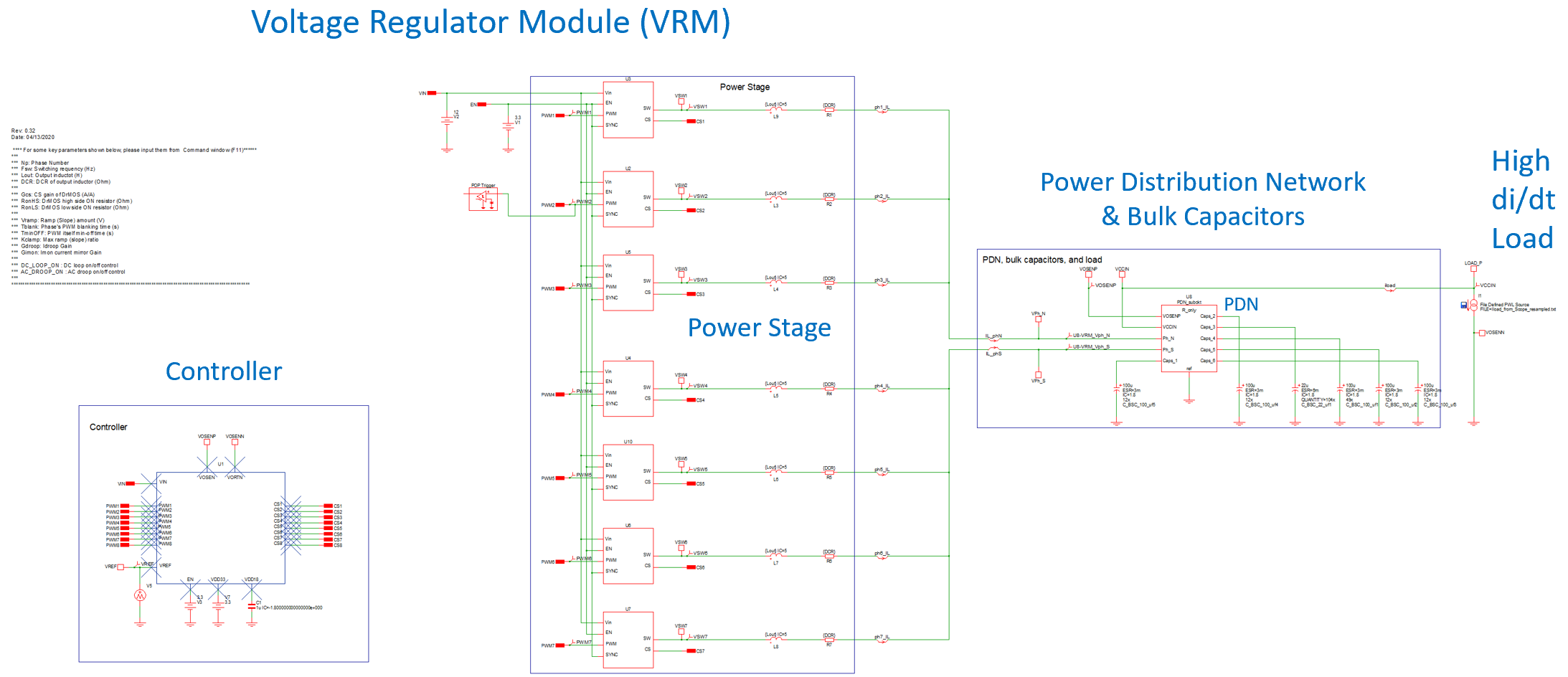

Figure G.1: Critical elements of a Voltage Regulator Module include the Controller, the Power Stage, the Power Distribution Network and the discrete bulk output Capacitors.



Figure G.1 illustrates the top-level schematic of the working example used in this analysis showing the Voltage Regulator Module (VRM) made up of an IC Controller and the Power Stage of a 7-phase Synchronous Buck DC-DC Converter. The 7 output inductors of the power stage are connected via the PDN to the input terminals of the microprocessor load. The bulk energy-storage output capacitors are connected in parallel at multiple points along the PCB paths between the output inductors of the power stage and the input terminals of the load.

This VRM is designed to deliver power to high current loads with very high di/dt requirements such as high-end microprocessors. Central to the converter's operation is the controller, which persistently senses fluctuations in output voltage and adjusts the duty cycle of each phase of the converter Power Stage to maintain a constant voltage at the load. This Voltage Regulator Module (VRM) efficiently steps down an input voltage to meet the specific output voltage requirements of the load. Additionally, bulk energy-storage output capacitors are included within the system to provide energy to the load during severe load transients when there is a large mismatch between the instantaneous load current and the instantaneous output current of the power stage of the VRM.

The core focus of this study is the Power Distribution Network (PDN), particularly the impact of the parasitic components contributed by the layout of the Printed Circuit Board (PCB) on power quality delivered to the load during high di/dt events. These parasitic elements, intrinsic to the physical design of the PCB, include parasitic resistances, inductances and capacitances which can have a non-negligible influence on the voltage delivered to the load.

In this analysis, we examine the PDN design challenge from the perspective of a Mother Board designer. In this case, the mother board designer is responsible for the design of the VRM and the PCB layout. The socket and package containing the processor load are givens in this design.

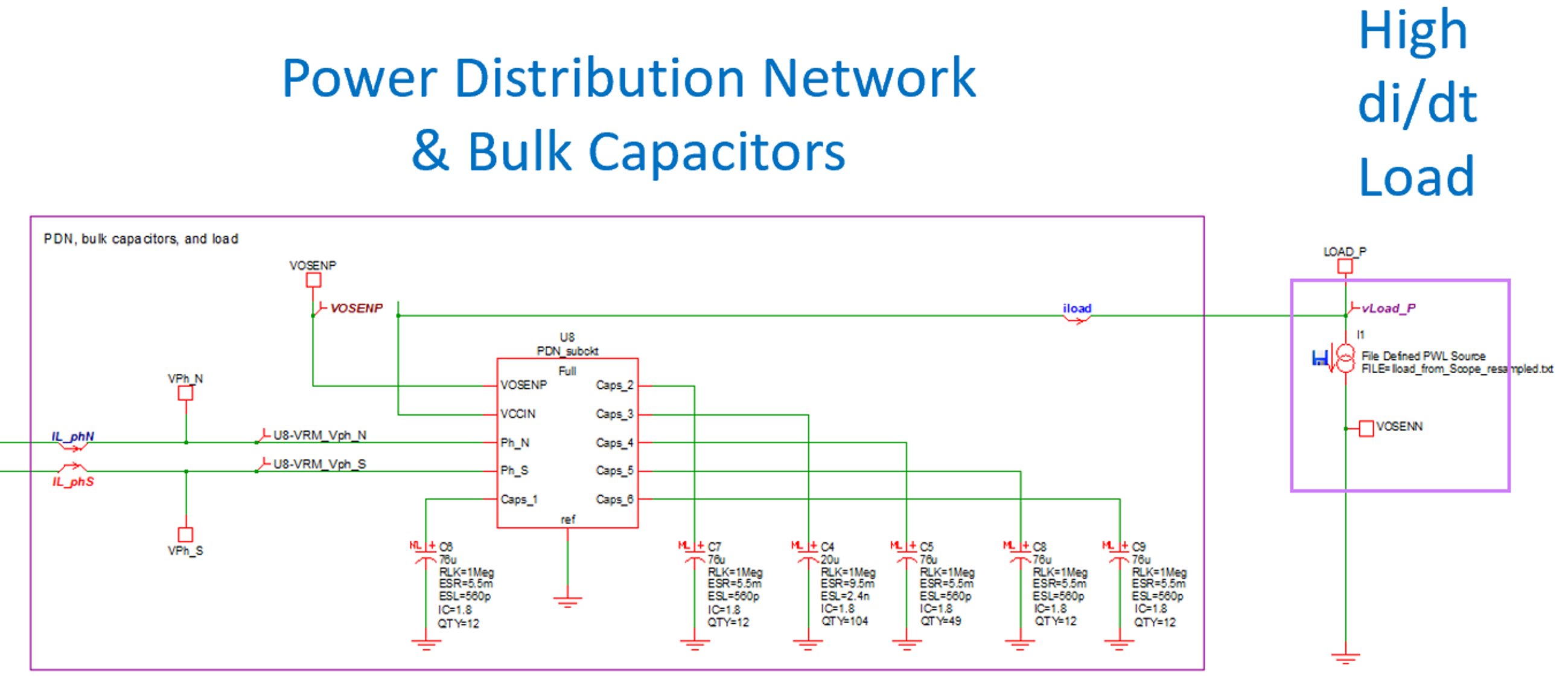

In this analysis the PDN block only describes the PCB parasitic elements that define the impedance between the output inductors and the load, and model the physical location of the connections to the discrete bulk capacitors. These discrete bulk capacitors are shown as external components and are explicitly not included in the PDN. This allows us to isolate the effects of the PCB layout parasitics on the performance of the power system from the impact of the number and quality of the bulk capacitors when handling the dynamic power demands of microprocessors with extremely high di/dt load transitions.

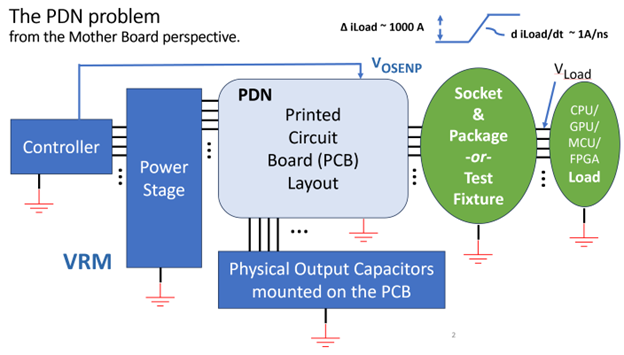

While in the final product the mother board designer will be concerned with the socket and IC package, often during the early design phase, a PDN model for the socket and package is not be available. In these cases, there will be a Test Fixture that will be specified so that if the output voltage excursions as measured at the VOSENP pin of the test fixture meet the system requirements, then the designer can be confident that the end product will likewise meet the power system requirements.

In our study, we have a PDN model of a Test Fixture that has been combined with the PDN of the PCB. So, while we can predict the voltage vLoad_P, it is modeling the voltage at the point where the load is connected to the test fixture. So, we can expect that the voltage VOSENP will accurately approximate what we will see in the final design, the voltage at vLoad_P of the test fixture will have more series parasitic inductance to contend with than we expect to encounter in the actual connection to the input voltage pins of the microprocessor chip in the final design.

We note that while it is possible to include the discrete bulk energy-storage capacitors within the PDN for some analytical purposes, such an approach is not compatible with the procedure presented here for addressing the PDN challenge. In this procedure, it is important to exclude from the PDN all discrete capacitors that are mounted on the PCB. As a result, the PDN represents only the parasitic impedances of the PCB, and the bulk capacitors are represented as discrete components on the top-level schematic.

As we can see in this figure and in Fig. G.1, the controller has two pins VOSENP and VOSENN that are used to make a kelvin connection to the package through the socket. These pins are as close as the designer can get to actually measuring the input voltage to the die inside the IC package. Consequently, all specification requirements that the mother board designer must meet are referenced to these VOSENP and VOSENN pins. In this analysis, VOSENN is connected to node zero ground, so we can sharpen our focus to just the VOSENP pin when we want to verify that the voltage requirements of a particular load have been met under various critical operating conditions.

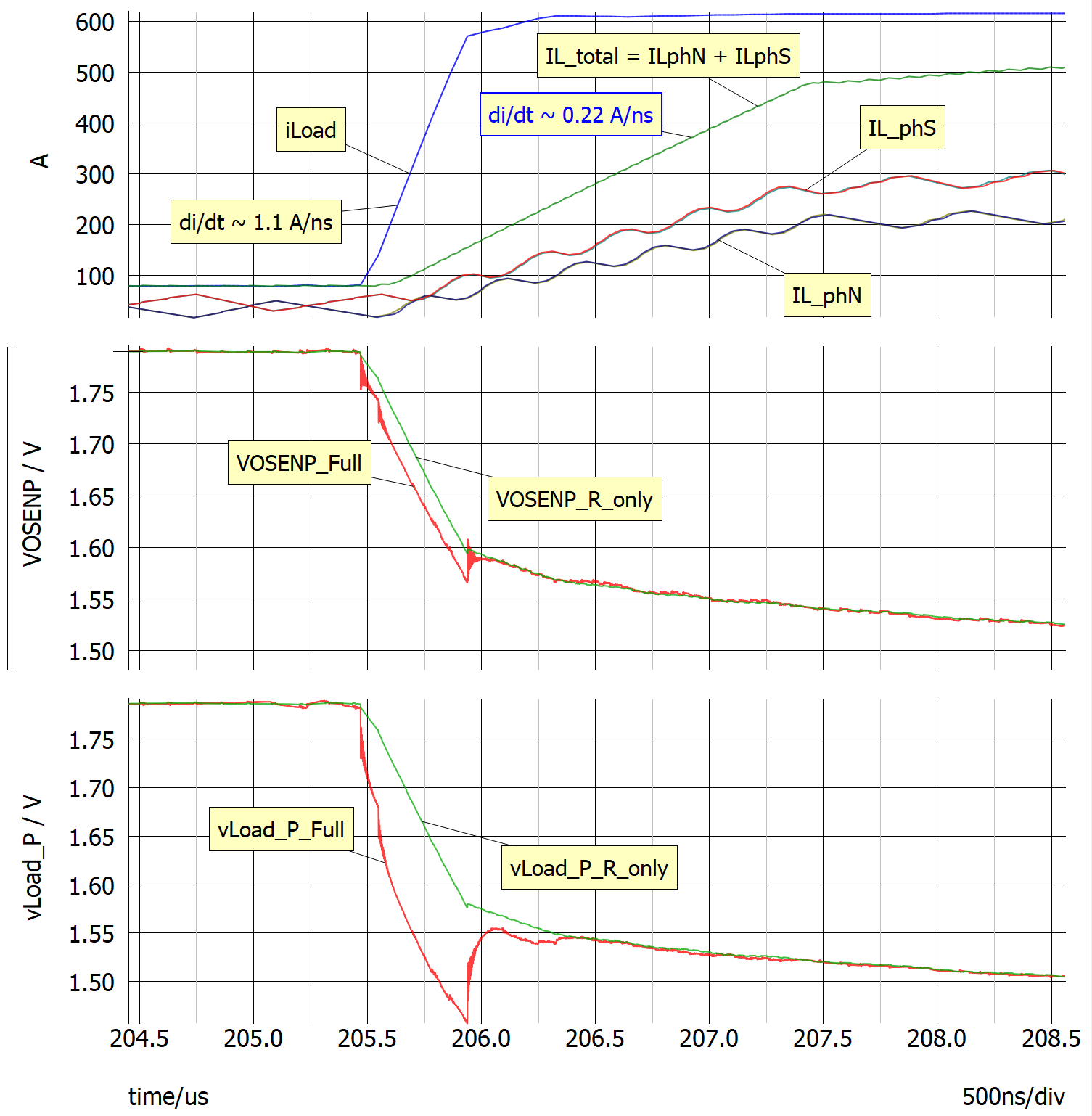

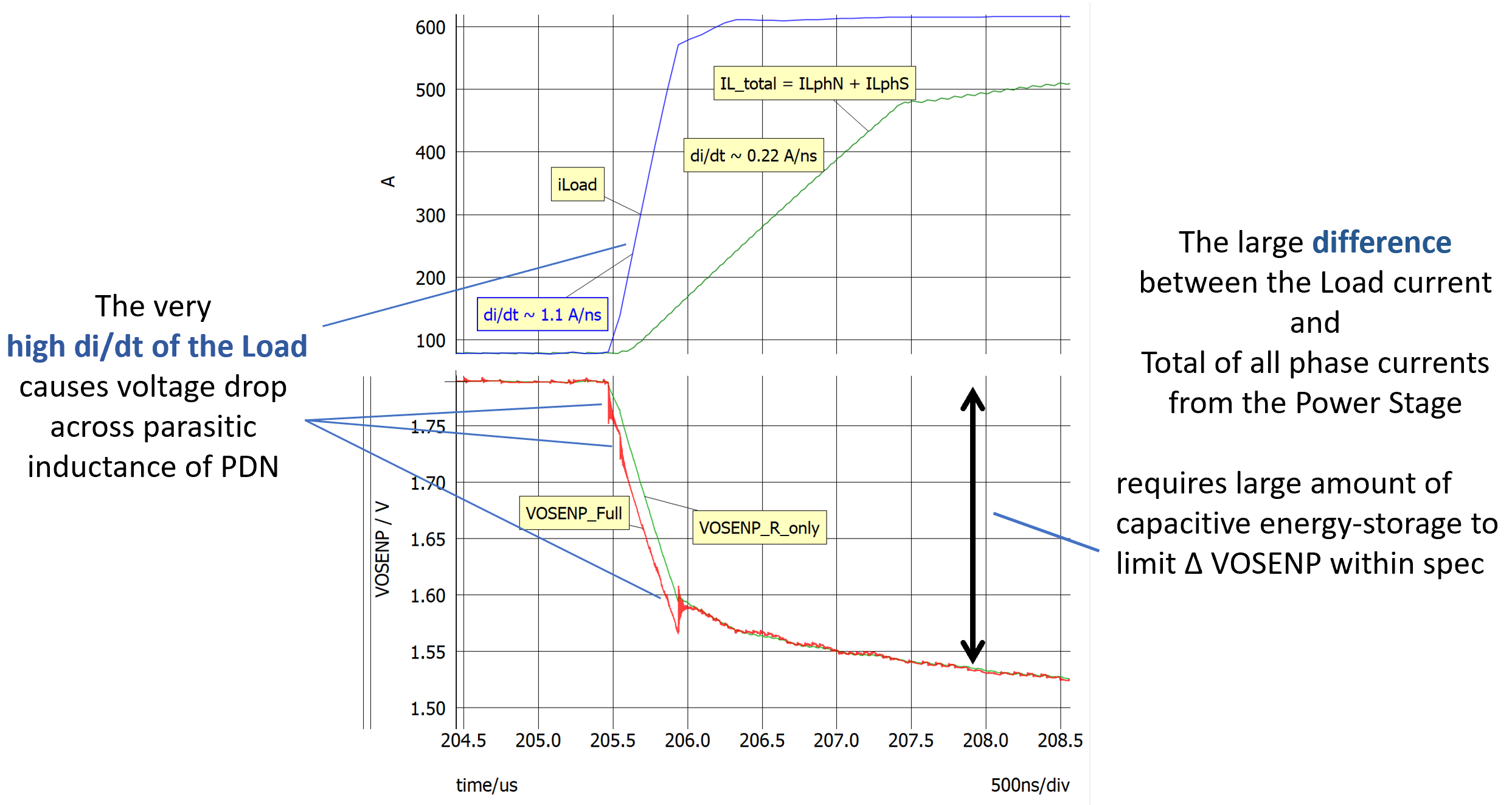

Figure G.2 illustrates the importance of being able to simulate the performance of the VRM with its associated PDN when powering very high di/dt microprocessor loads. In the top grid we see the load current iLoad transient rising from ~ 80 A to ~ 613 A with a rise time of approximately 1.1 A/ns. Superimposed on that curve is the sum of all the output inductor currents iLtotal which equals the sum of the three phases iL_phN being fed into the “North” side and the 4 phases iL_phS being fed into the “South” side of the microprocessor package. We can see that the VRM is not able to ramp up its total output current iLtotal nearly fast enough to match the load. In fact, during this step load transient, the load current exceeds the total current iLtotal coming from all the output inductors by as much as 400 Amps. The load current, iLoad, exceeds iLtotal by more than 50 Amps for more than 6 μs. In order for the input voltage to the microprocessor not to dip too much during this transient this excess load current must be supplied by the bulk capacitors. To do this successfully the ESL and ESR of the bulk capacitors as well as the parasitic inductance and resistance of the connection introduced by the PCB layout must be managed very carefully.

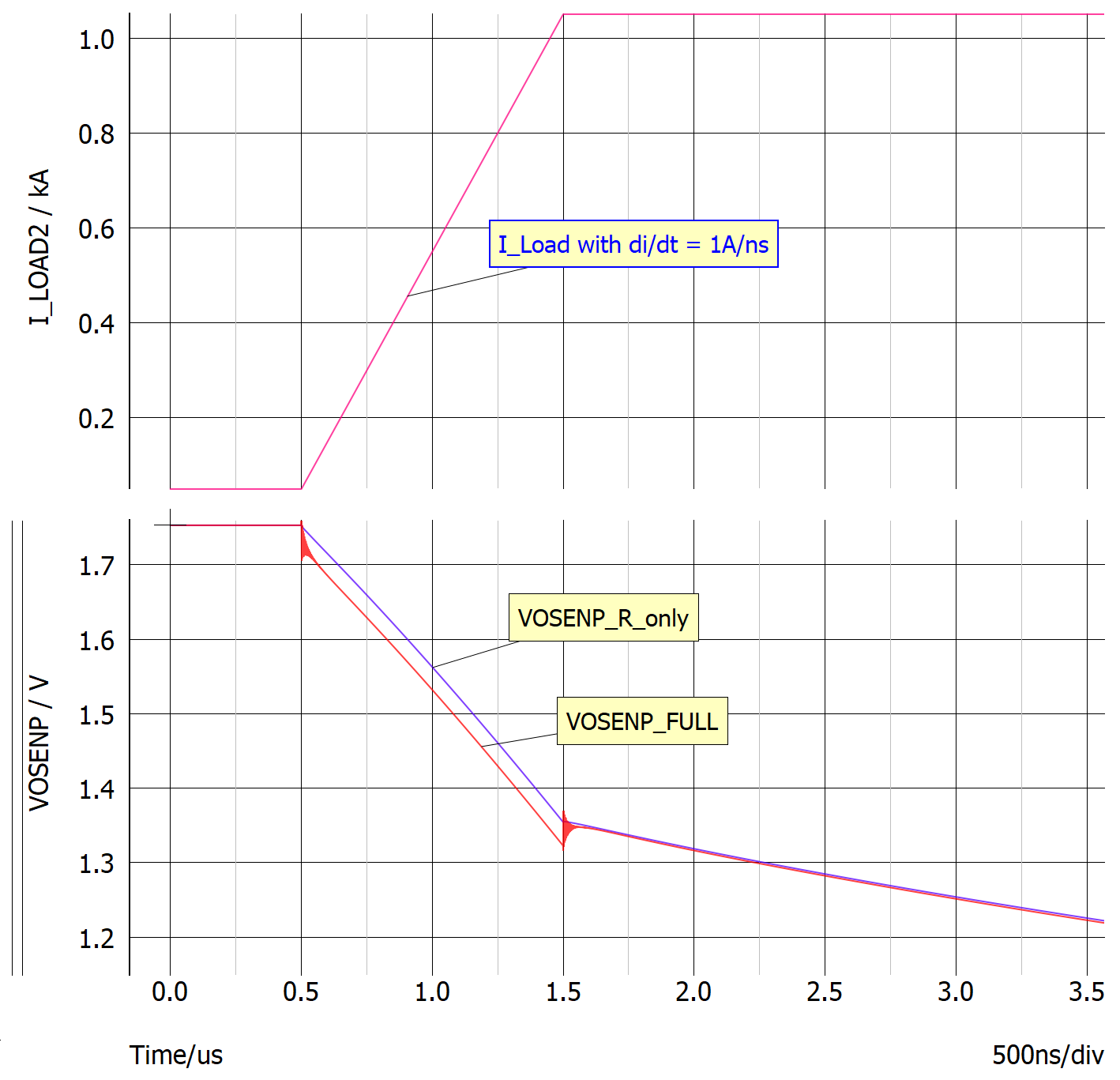

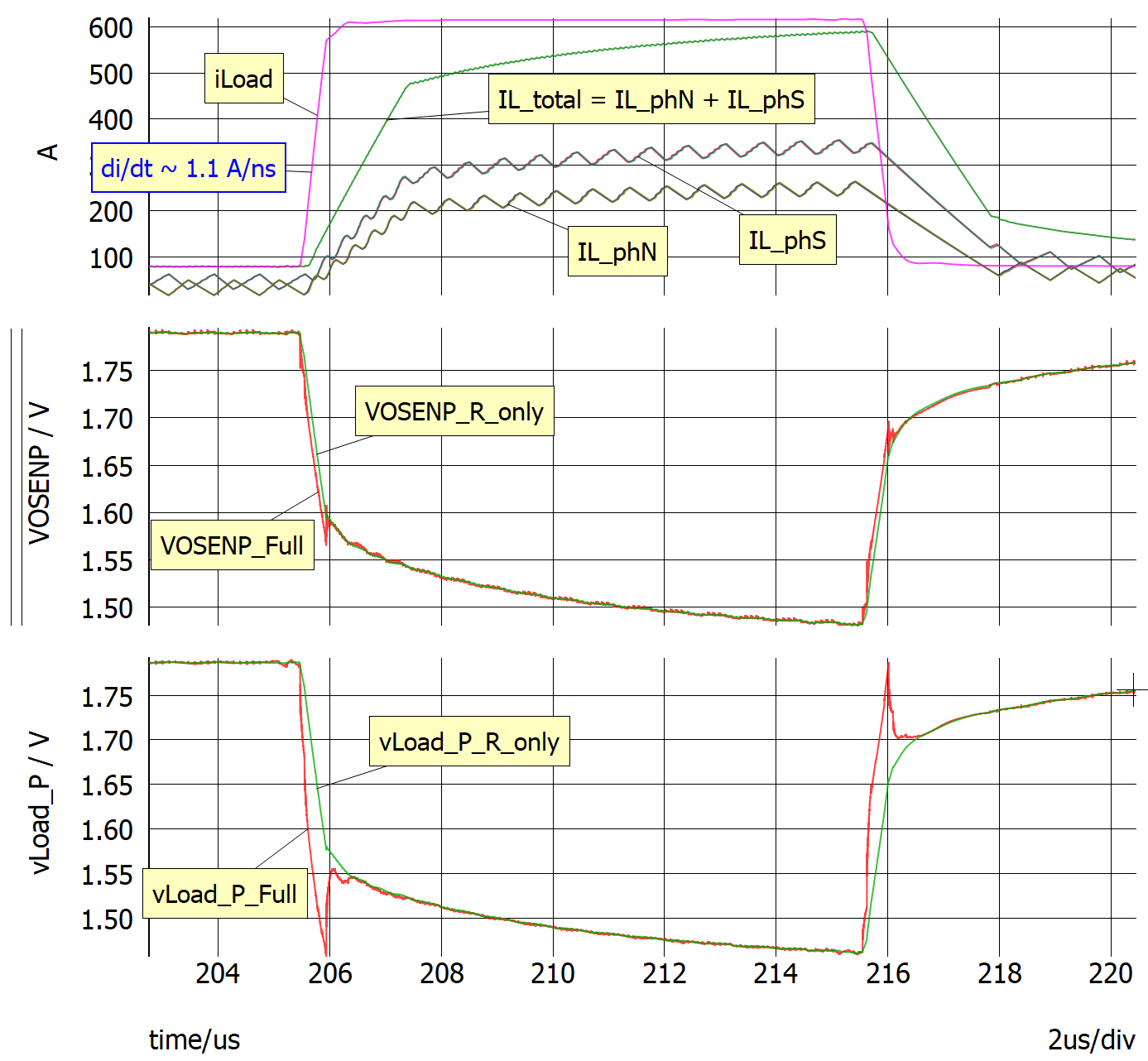

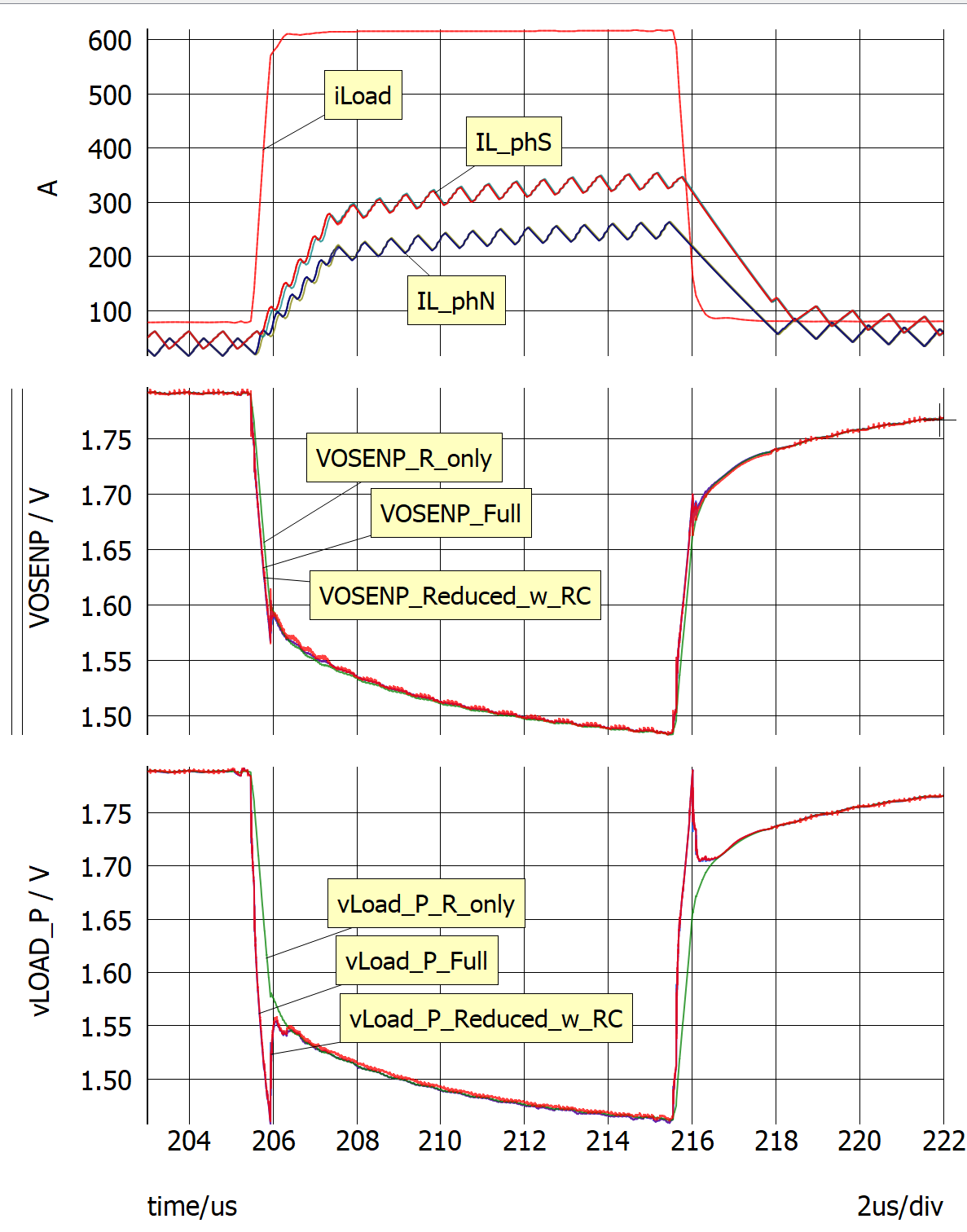

Figure G.2: The VOSENP pin to the controller is used to sense the input voltage ot the microprocessor shown here under a high di/dt load transient. Waveform VOSENP_Full shows effect of parasitic resistance, parasitic series inductance, and parasitic capacitance of Printed Circuit Board (PCB) layout (PDN) under a step load of ~530 A with slew rate of ~1.1 A/ns. VOSENP_Full shows the combined effects on the sense pin VOSENP voltage of all parasitic elements of the PDN. VOSENP_R_only shows the effects of only the parasitic resistances of the PCB layout or PDN.

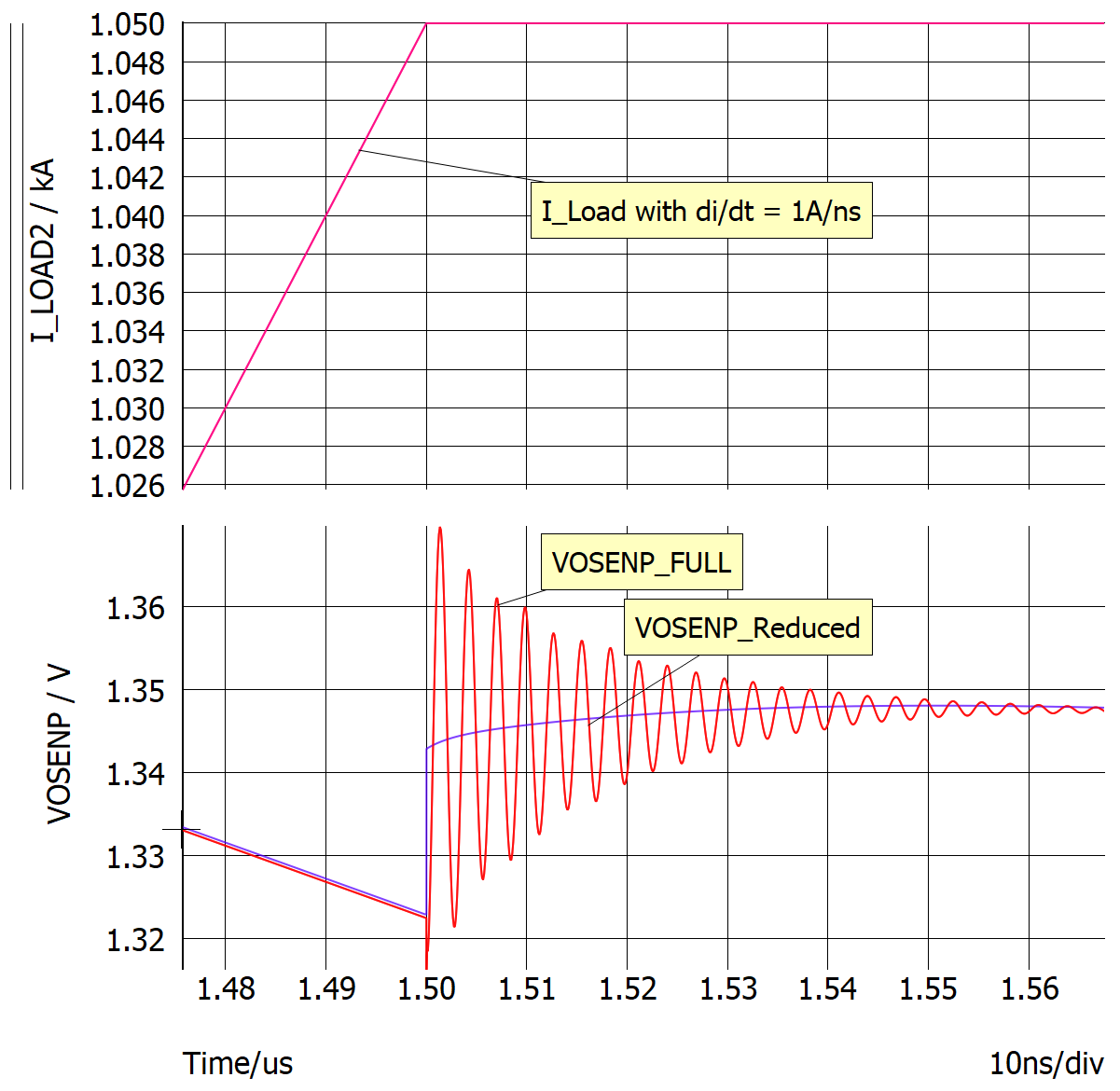

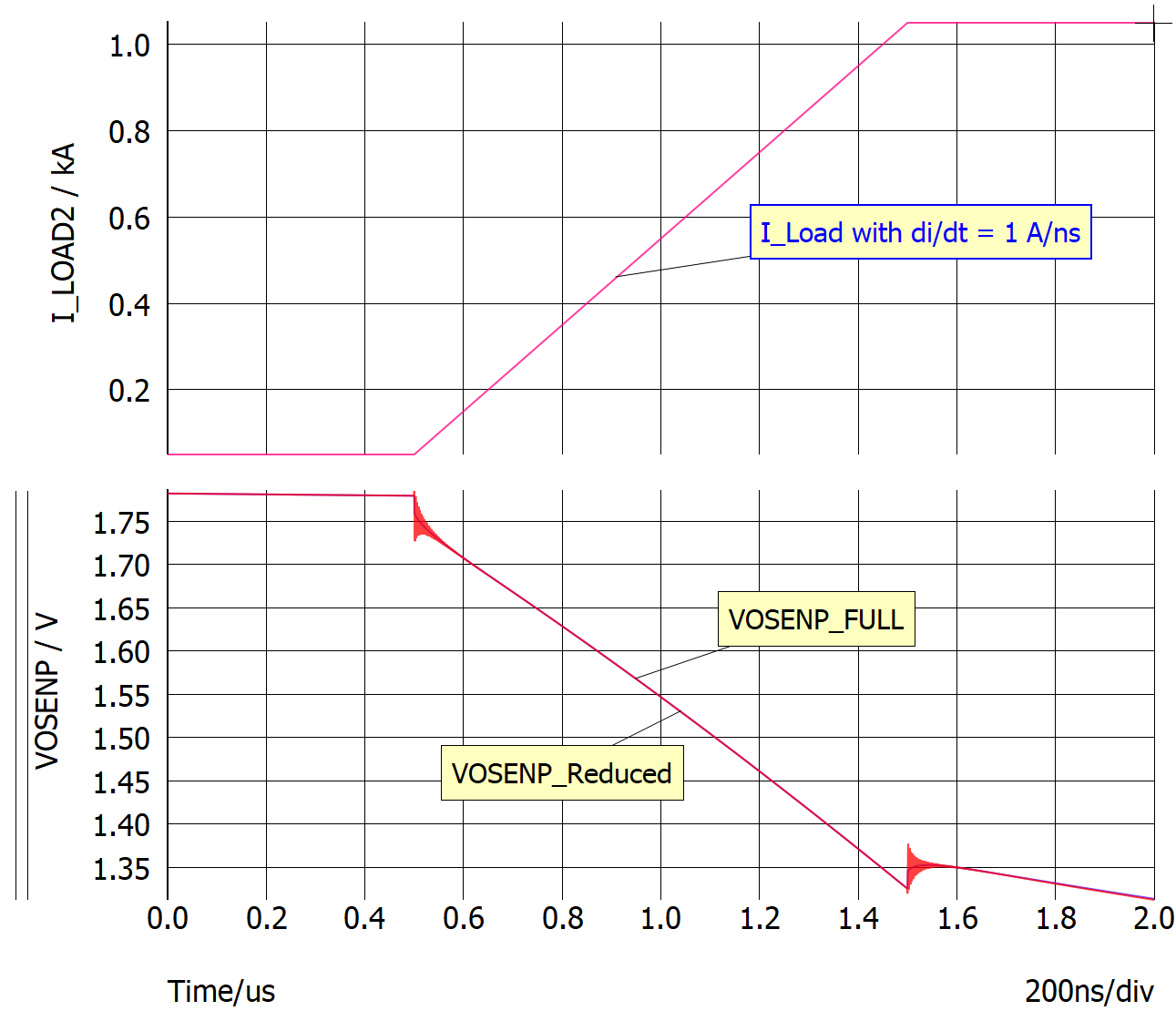

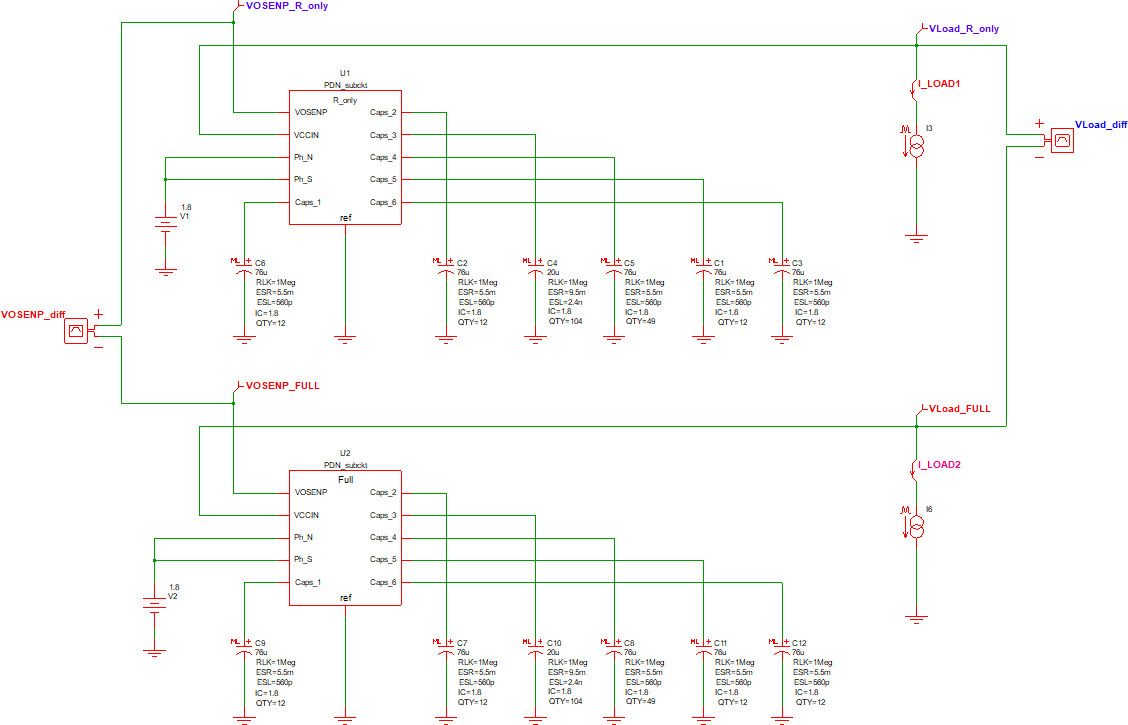

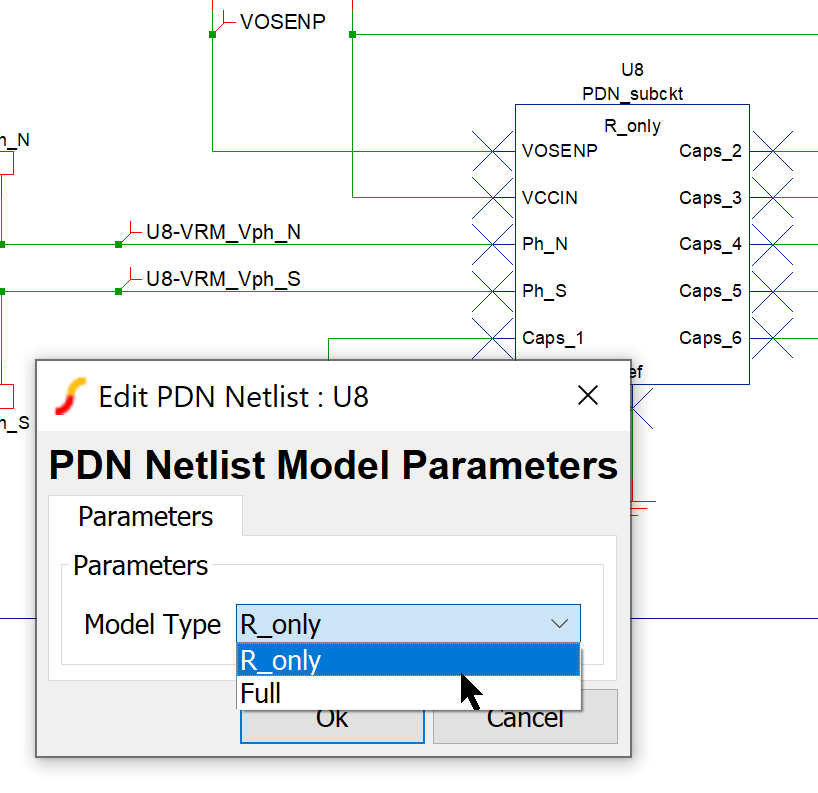

On the lower grid of Fig. G.2 is a plot of two curves. The curve labeled VOSENP_Full shows the sense pin voltage for the microprocessor during this load transient with the full model of the PDN that includes all the parasitic resistances, inductances and capacitances of the PCB layout. The curve VOSENP_Ronly shows the resulting sense pin voltage waveform if only the parasitic resistances of the PDN model are included in the simulation. The difference between these two curves shows the impact primarily of the parasitic inductances of the PCB layout. The impact of the PCB parasitic capacitances is relatively minor for our purposes. These two curves diverge when there is a significant di/dt of the load current. Otherwise, these two curves are very close to each other. There is a small amount of ringing where the parasitic capacitance interacts with the parasitic inductance during significant changes in di/dt of the load current.

Remote sensing has long been used to compensate for resistive drops between the output of a power supply and the load. However, with the extremely high di/dt load transients of recent generations of high-performance microprocessors, the inductive impedance of the PDN can no longer be ignored.

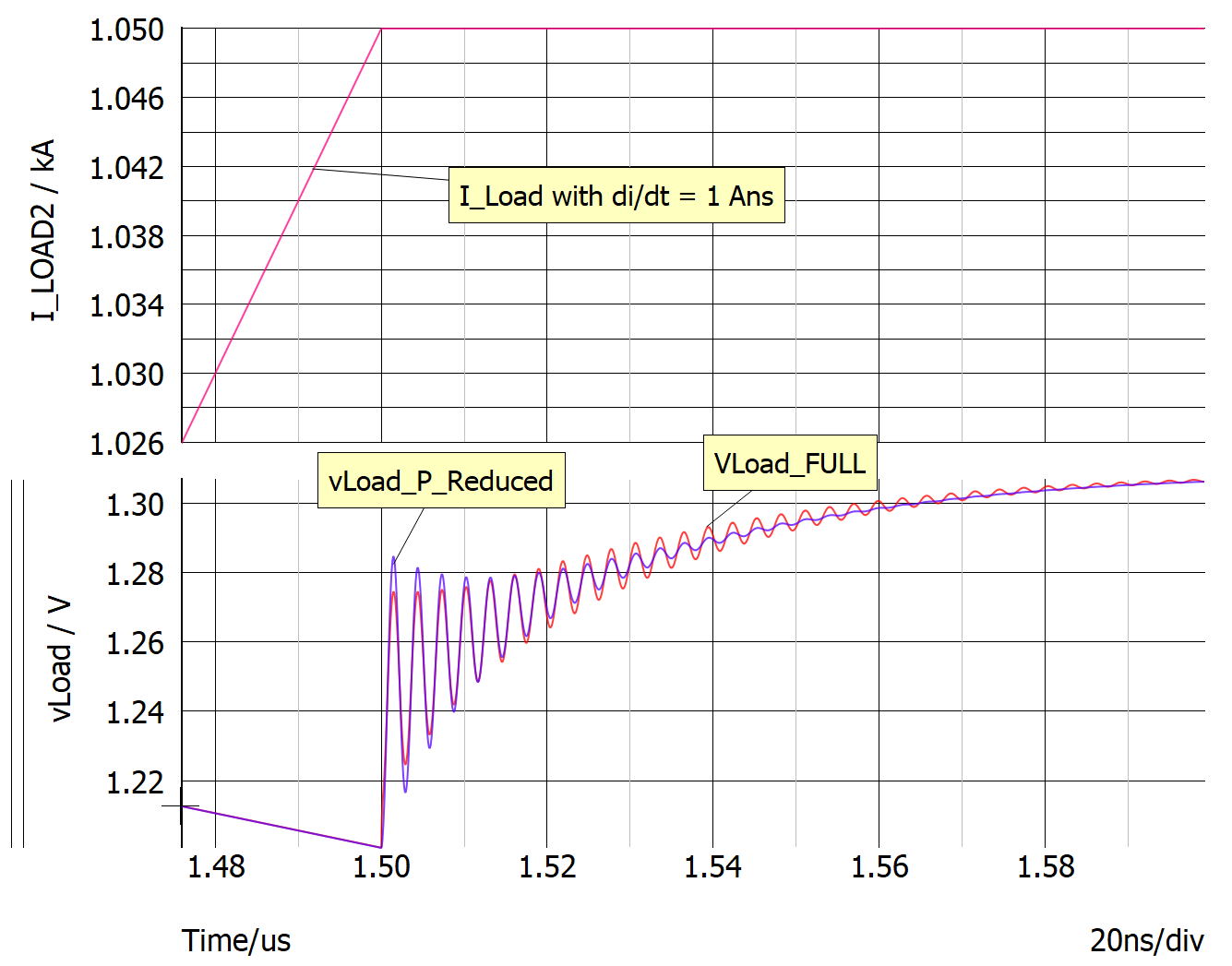

During these severe load transients with di/dt ~ 1.1 A/ns, to meet the regulation requirements, the sum of all the effective series inductances between the output bulk capacitors and the input terminals to the load must be kept to a value on the order of 0.1 nH. This challenge to deliver on the order of 1000 A through a PDN with less than 0.1 nH of ESL is a bit breath taking and not for the faint of heart. It is not hard to understand why simulation tools are essential to master this design challenge within a time frame compatible with today’s very short development schedules.

When powering modern high performance microprocessors, the PCB layout and the placement, quality, and quantity of the bulk capacitors has become a critical dimension of the power supply system design. The design of the PDN has become too important and too sensitive, and the development schedules have become too short to be supported solely by trial-and-error design methods. Here we demonstrate a procedure to apply Power Supply System simulation to verify that a given Power Supply design with a given PDN will meet system requirements.

To accomplish this goal, we need a detailed simulation model of the VRM controller of Fig. G.1. To handle the demanding requirements of this application, these controllers typically employ highly nonlinear control strategies to handle the high di/dt load transients. They also will often shed phases of the Power Stage under very light load conditions to reduce power dissipation and improve operating efficiency at light loads. Consequently, these VRM simulation models can be very complex. In order to model these severe load transients these models must be time-domain switching models. Averaged models cannot accomplish this task.

We also need accurate simulation models of the PDN. Current methods to extract a Spice model of the PDN use PCB analysis methods that were originally created to address signal integrity applications for high-speed digital signals flowing through narrow PCB traces. These tools have now been adapted to analyze the PDN. Depending on the upper frequency of the requested analysis, the resulting simulation models can be quite complex as they attempt to model effects in the 10 GHz range. These high frequency PDN models can have more than 3000 to 4000 poles or similar number of equivalent inductors and capacitors. PDN models this complex will result in SIMPLIS system simulations that are impractically slow when considering the number of system simulations that must be completed in a reasonable time to meet ever shortening project schedules.

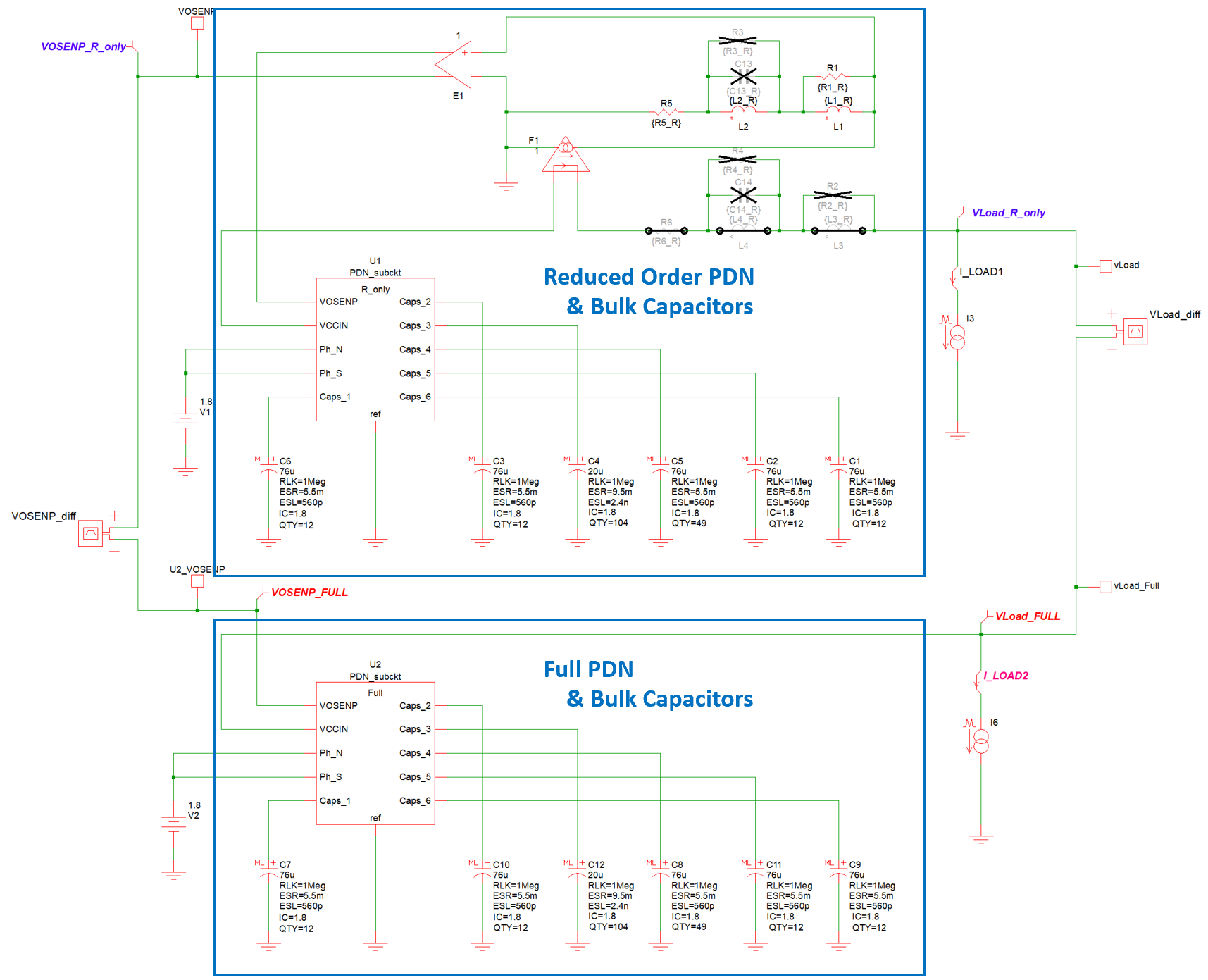

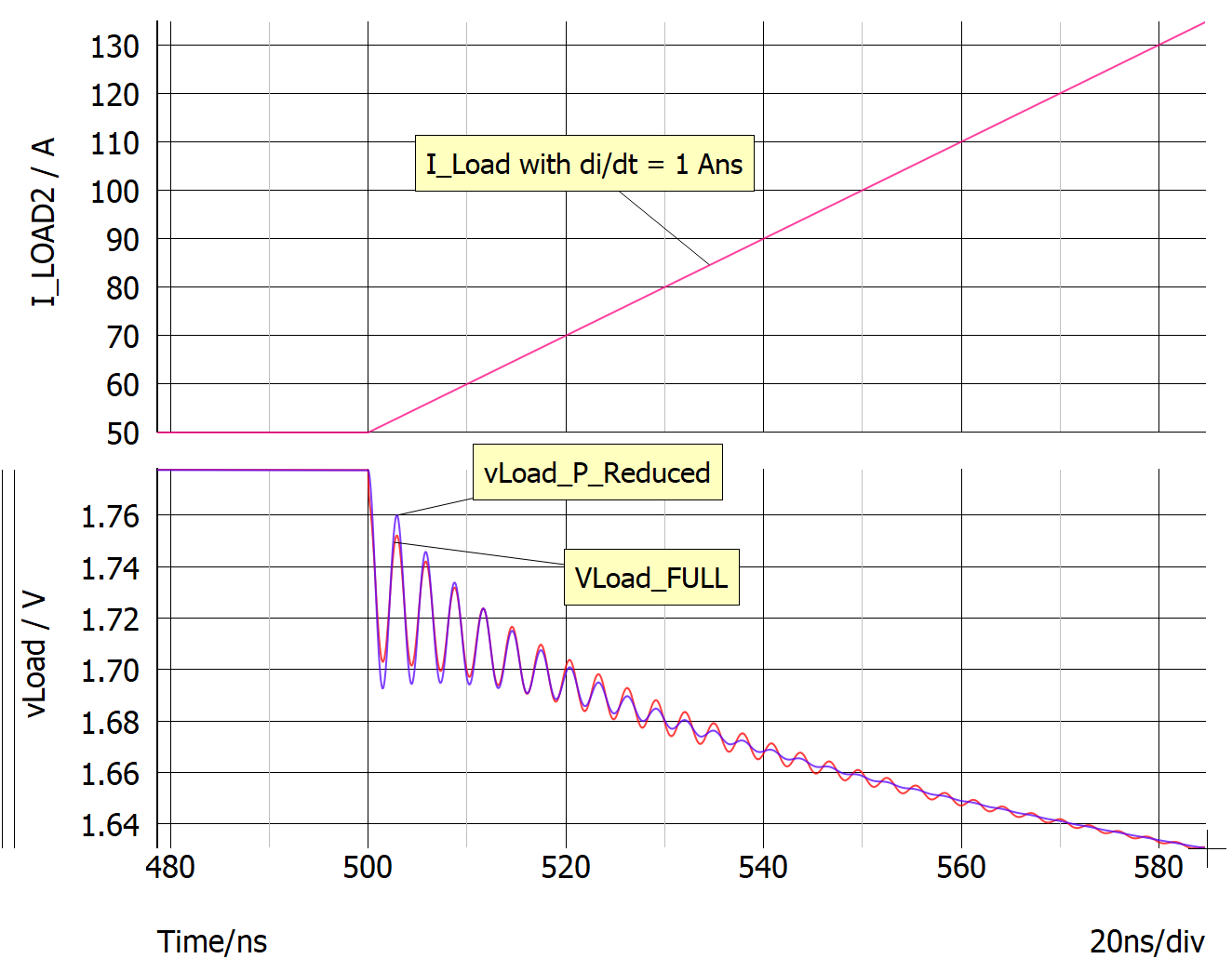

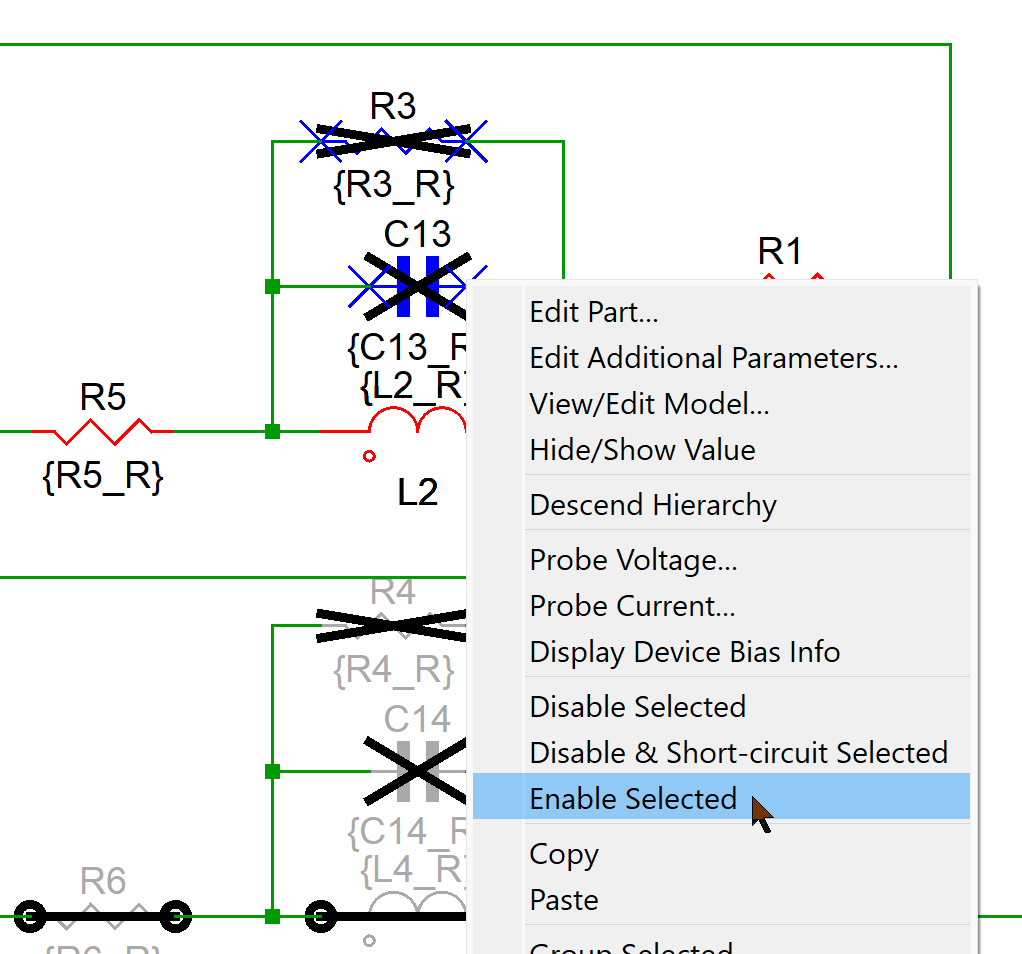

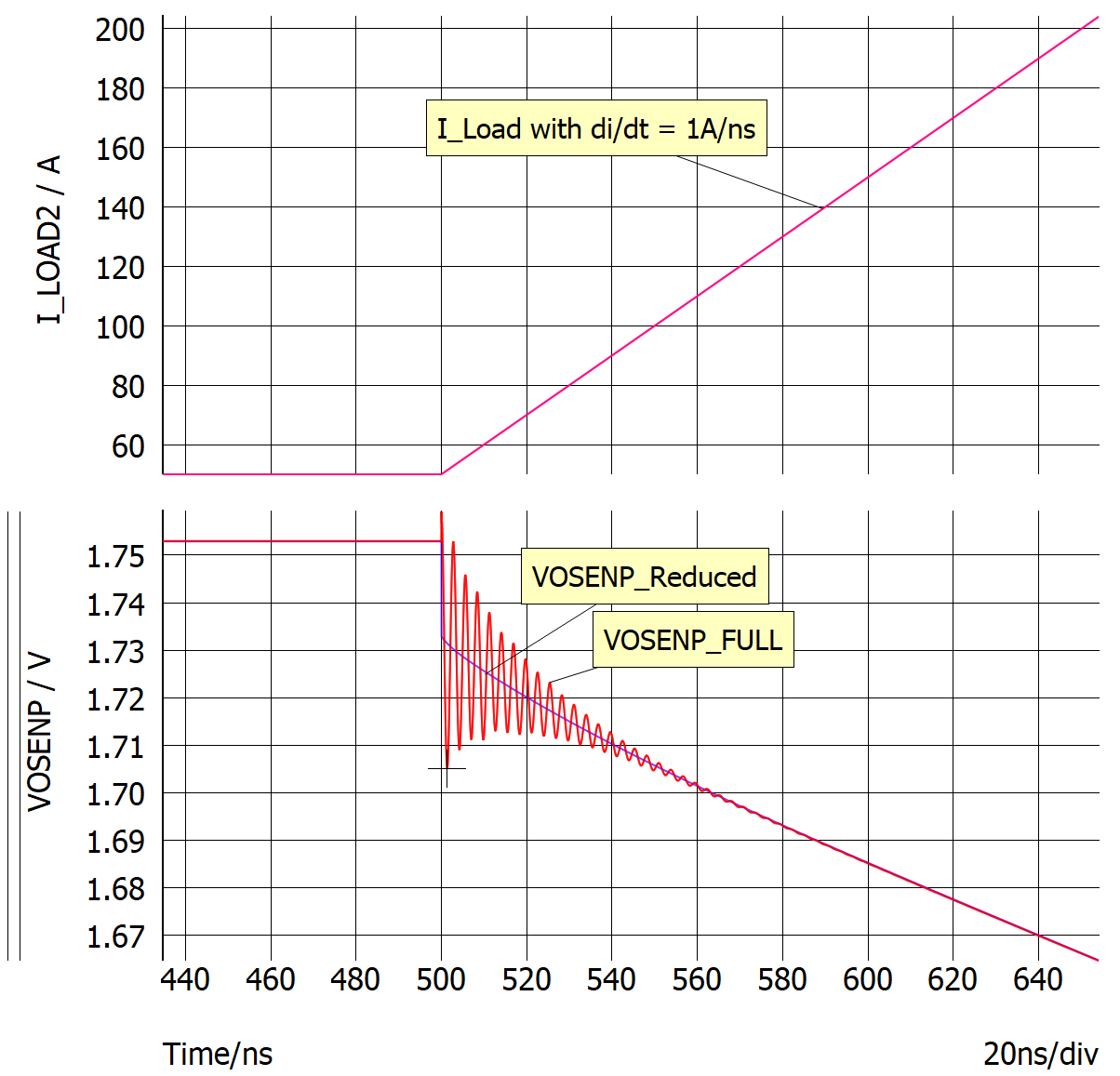

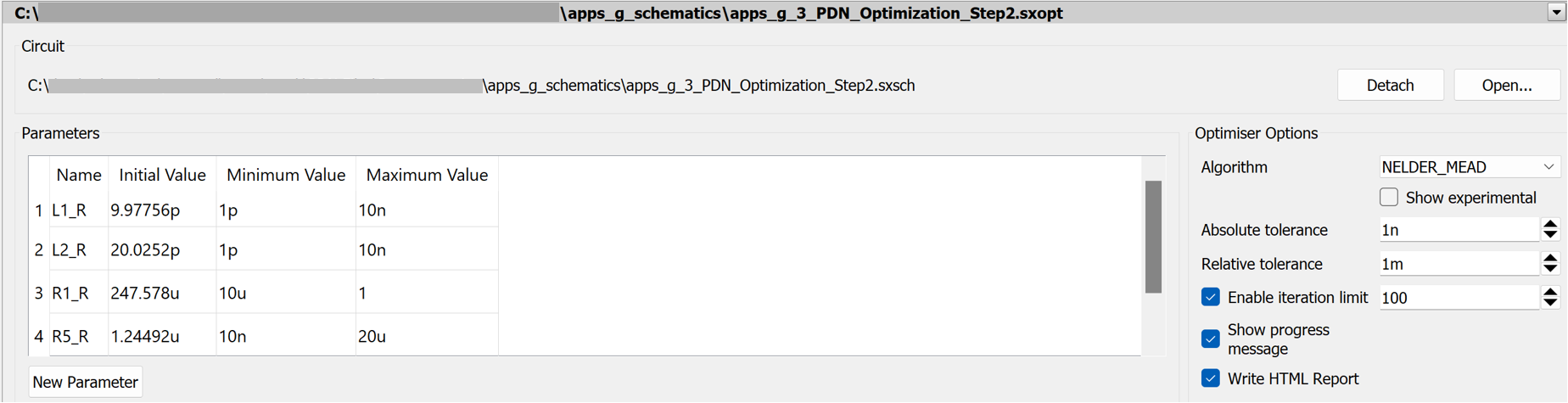

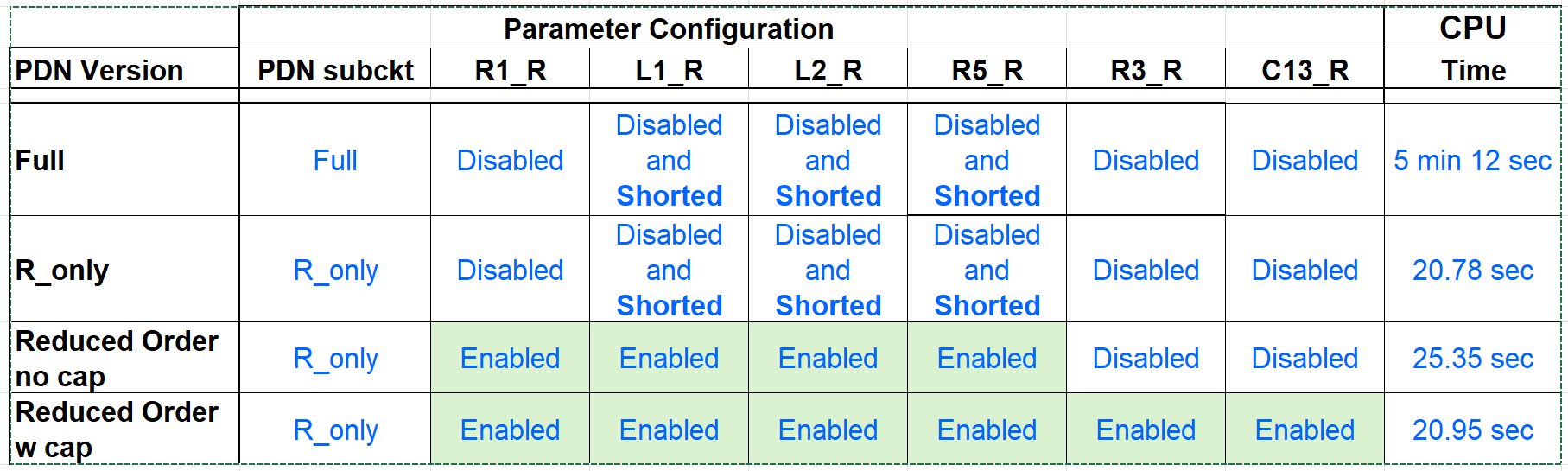

Fortunately, these extremely high frequency models are not needed to achieve accurate simulation results. Here we demonstrate how a simplified lower order model of the PDN can achieve very useful results with much faster simulation times that are compatible with demanding project schedules.

G.3 Extract Spice netlist of PDN from PCB layout

A variety of tools are available to extract a Spice model of the parasitic resistances, inductances and capacitances associated with the portions of a PCB layout connecting the output inductors of the power stage with the input terminals of the microprocessor load. These tools can take as input the physical layout of the PCB and then calculate the associated PCB parasitic impedances.

The details of this PCB parasitic extraction process differ from one tool to the next and are not the subject of this document. However, there are several items that these tools have in common. Many of these tools have their origins in the field of Signal Integrity. Many of them perform their analysis of the PCB layout in the frequency domain and have as a possible output a set of s-parameters. S-parameters are only defined in the frequency domain and as such are not applicable for the time-domain analyses required for predicting VRM output-voltage performance under extremely high di/dt load transitions. Fortunately, many of these tools have supplementary applications that will convert the S-parameter data to an equivalent Spice model made up of passive R, L and C components and controlled sources. During the conversion process, it is essential that the resulting networks exhibit passive network behavior. It is also important to submit these mathematically derived models to a causality check so that they do not exhibit nonphysical behavior.

When creating the Spice Model of the PDN, it is tempting to think that it is desirable to specify that the valid upper frequency range of the PDN model be as high as possible. Some tools will provide models that are valid up to 10 GHz or higher. However, from a practical perspective, less is often more. PDN models that are valid to frequencies up to 1 to 10 GHz can result in Spice models with more than 4000 to 6000 equivalent parasitic inductors and capacitors. A PDN with this many energy storage elements will result in impractically long simulation times.

Based on our experience, we recommend applying these constraints to the PDN extraction process.

The resulting PDN Spice netlist should have:
  • No more than 10 -12 ports
  • No more than 100 poles (equivalent inductors and capacitors)
  • Purely passive network behavior
  • Passed a causality check
The tools for converting the s-parameter models to SPICE models are not the focus of this discussion, but a partial list of these tools include IdEM, Sigrity Broadband SPICE, Keysight Broadband SPICE Model Generator, …

The PCB layout also defines the location of the bulk capacitors that are connected in parallel with the load. In order to minimize the number of ports of the PDN, it is important to group the capacitors into islands that reduce the number of ports of the PDN that connect to bulk capacitors to less than 6 or 7. For capacitors that occupy the same island of the PCB layout, it is important that all capacitors of the same type with the same values of C, ESR and ESL be grouped together in a single symbol using the Quantity feature as shown here.

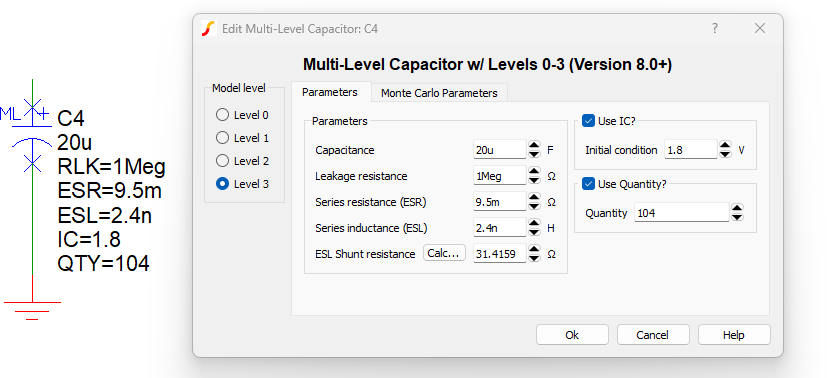

The simulation speed is dramatically improved by using the Quantity feature rather than showing, in this example, 104 capacitors on the schematic in parallel. Bulk capacitors connected in parallel with the load via the PDN on different islands of the layout should be grouped with like capacitors on the same island.

Example of auto-generated PDN Spice model

In this exercise, we will briefly examine the contents of the output of one of these PCB layout extraction routines that result in a Spice subcircuit model of the PDN shown in the schematic of Fig, G.1.

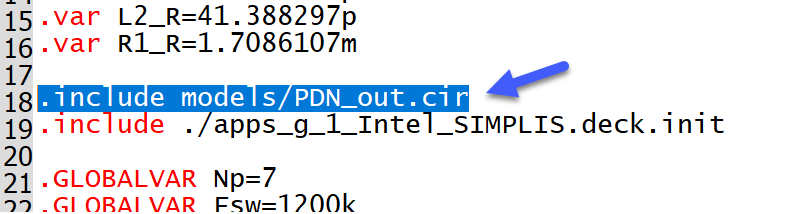

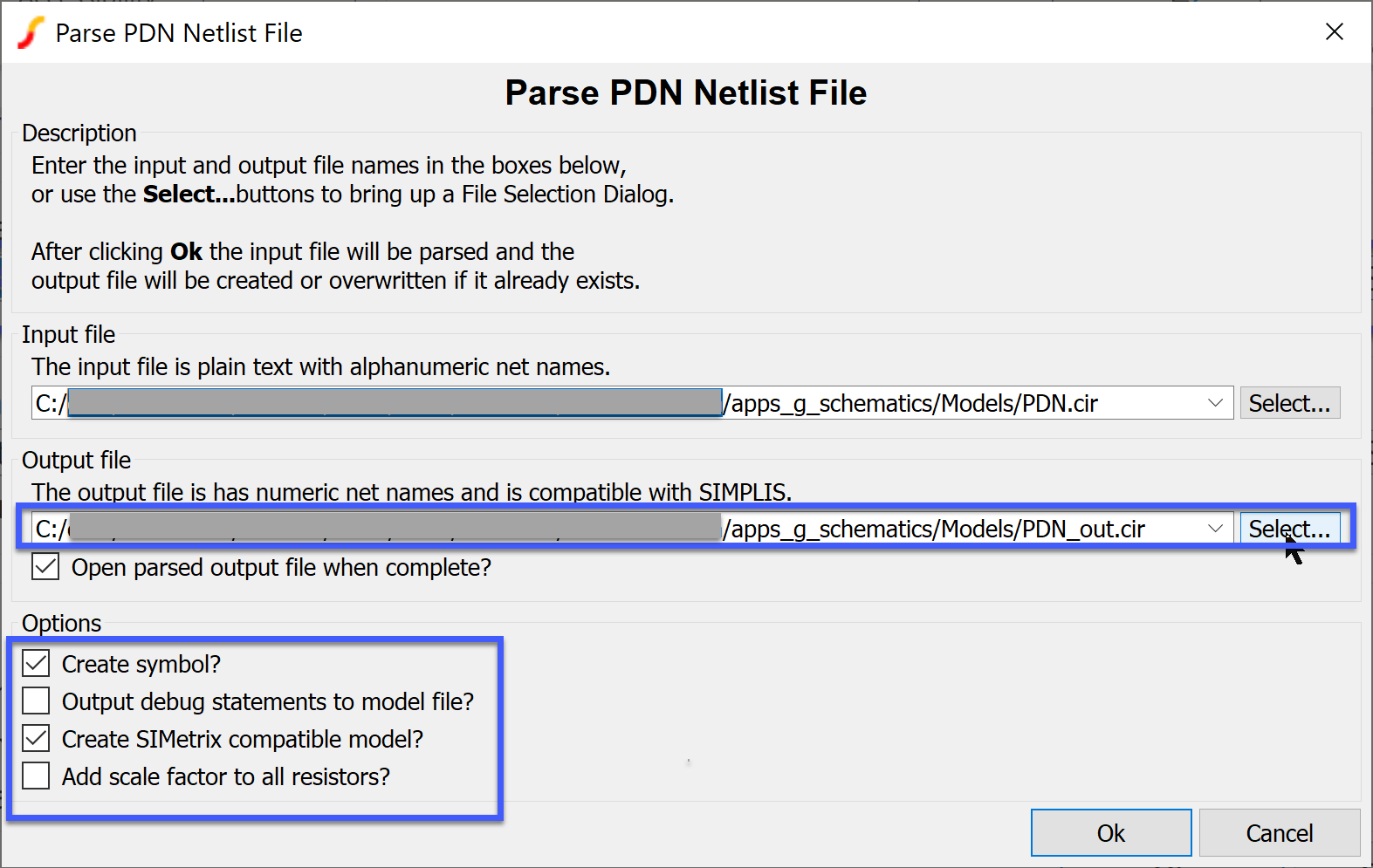

1. Open the file Models\PDN.cir in a text editor. You can observe the form and format of this Spice model of the PDN that we use in this study.

**********************************************************
** STATE-SPACE REALIZATION
** IN SPICE LANGUAGE
** This file is automatically generated
**********************************************************
** Created: 05-May-2021 by IdEM MP 12 (12.5.0)
**********************************************************
**
**********************************************************
** COMMENTS
**********************************************************
**
** Generated from: VR14_06A_MB_INT_10ohm_vsense_tie.spd
**
**  VCCIN_Vsense::VCCIN
**  VRTT::VCCIN
**  Vph_N::PVCCIN_CPU0
**  Vph_S::PVCCIN_CPU0
**  North_VR_Caps::PVCCIN_CPU0
**  South_VR_Caps::PVCCIN_CPU0
**  Top_Cavity_Caps::PVCCIN_CPU0
**  Btm_Cavity_Caps::PVCCIN_CPU0
**  Btm_VR_Caps_N::PVCCIN_CPU0
**  Btm_VR_Caps_S::PVCCIN_CPU0
**
** Sigrity Suite Version: 19.0.4.01041.258722   004
** Computer Host Name: FM6SRDS2035
**
** TouchstoneFormatFlag = 1
**  GNDNET GND
**  NETSLIST PVCCIN_CPU0, VCCIN
**  Port 2 = PKGJ1-AA12 VCCIN
**  Port 5 = BRDC1902-2 PVCCIN_CPU0
**  Port 6 = BRDC1679-2 PVCCIN_CPU0
**  Port 7 = BRDC1667-2 PVCCIN_CPU0
**  Port 8 = BRDC1771-2 PVCCIN_CPU0
**  Port 9 = BRDC1914-2 PVCCIN_CPU0
**  Port 10 = BRDC1757-2 PVCCIN_CPU0
**
**
**********************************************************
**
**
**---------------------------
** Options Used in IdEM Flow
**---------------------------
**
** Fitting Options **
**
** Bandwidth: 5.0000e+08 Hz
** Order: [3 2 9]
** SplitType: none
** tol: 1.0000e-03
**
**---------------------------
**
** Passivity Options **
**
** Alg: SOC+HAM
**    Max SOC it: 50
**    Max HAM it: 50
** Freq sampling: manual
**    In-band samples: 200
**    Off-band samples: 100
** Optimization method: Model based
**
**---------------------------
**
** Netlist Options **
**
** Netlist format: SPICE standard
** Port reference: common
** Resistor synthesis: standard
**
**---------------------------
**

**************************************************************************
***{
***
*** The following was added by SIMPLIS Technologies, Inc. as a brief
***	description of a typical SPICE subcircuit file modeling a PDN
***	(Power Distribution Network) and how such a file can be converted

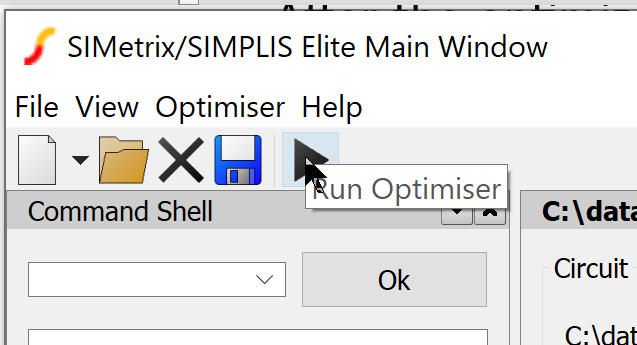

***	to be used by SIMPLIS in the SIMetrix/SIMPLIS environment.
***
***
*** This is an example SPICE subcircuit model for a 10-port PDN.
***
*** A SPICE subcircuit model for a PDN is typically generated by tools that
***	model the frequency-domain scattering characteristics of the
***	physical layout of the conductor/via of the printed circuit board,
***	with the possible inclusion of explicit capacitors and resistors
***	that are not parasitics.
***
*** Since SPICE usually works with node names and SIMPLIS works with node

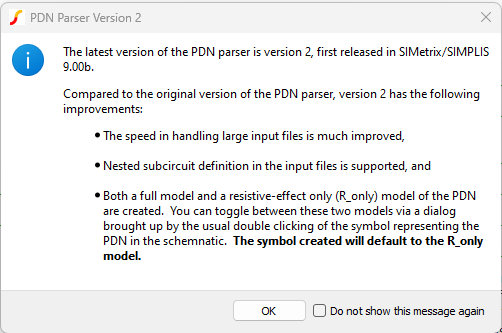

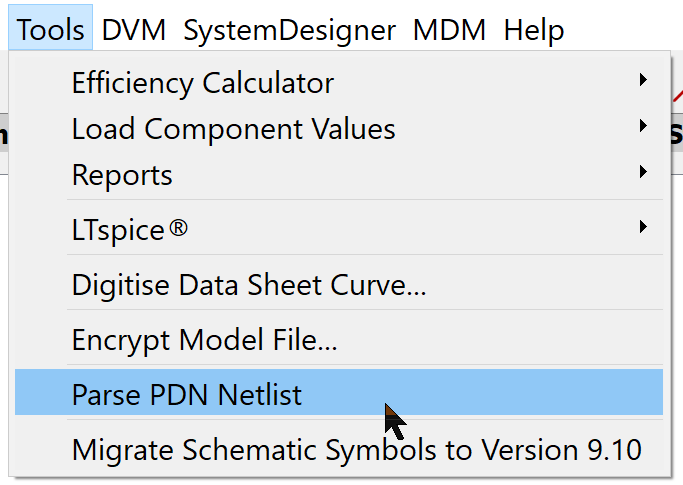

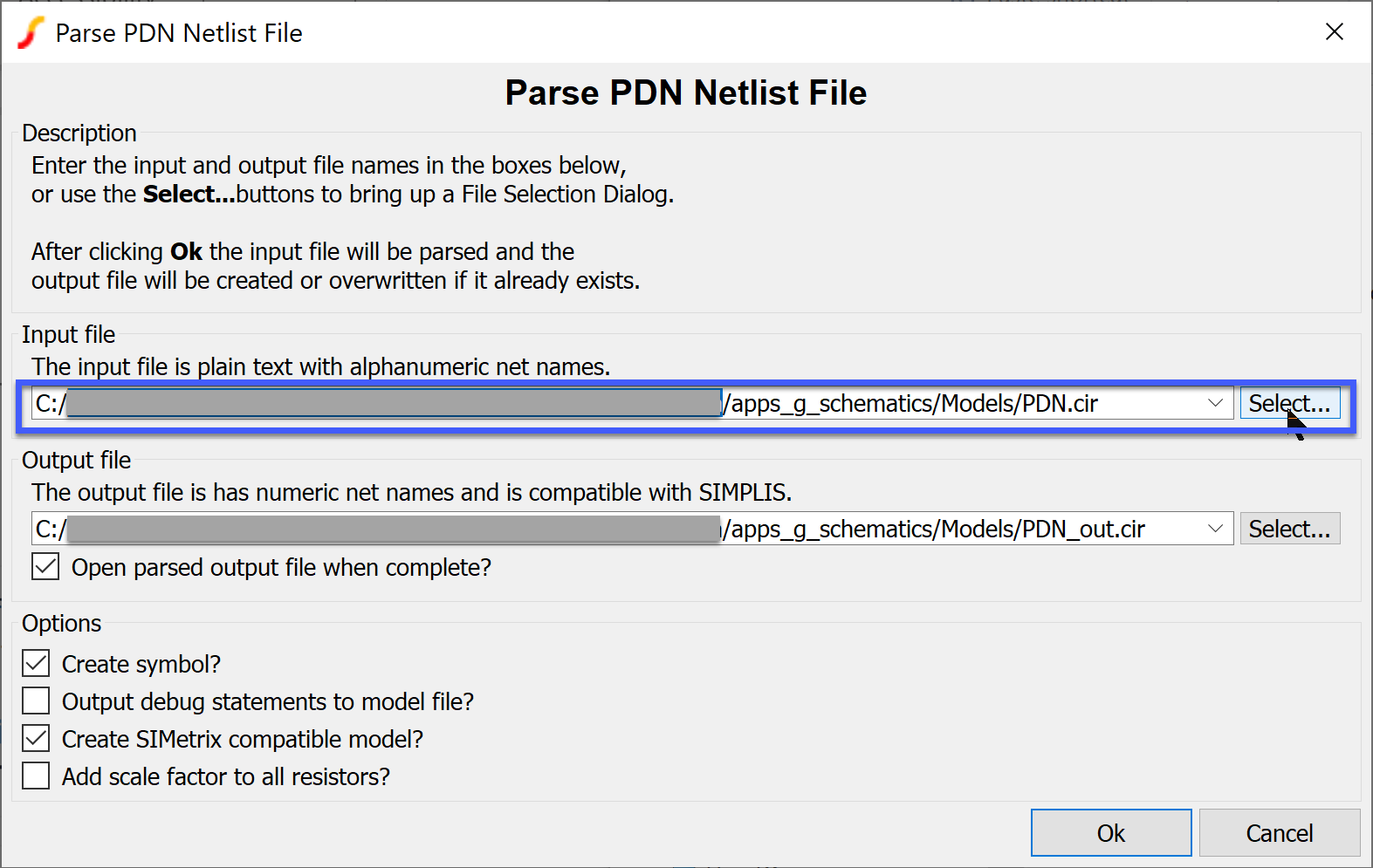

***	numbers, SIMPLIS Technologies, Inc. has developed a PDN Parser
