SystemDesigner Constant Value
The SystemDesigner Constant Value models a fixed bus value. Use this device whenever you need to apply a fixed bus value in a SystemDesigner schematic.
In this topic:
| Model Name: | SystemDesigner Constant | |||
| Simulator: |  |
This device is compatible with the SIMPLIS simulator. | ||
| Parts Selector Menu Location: | SystemDesigner Functions (max. 32 bit) | |||
| Symbol Library: | SIMPLIS_SystemDesigner.sxslb | |||
| Model Library: | SIMPLIS_SystemDesigner.lb | |||
| Subcircuit Name: | SIMPLIS_SD_CONSTANT_32 | |||
| Symbol: |
|
|||
| Multiple Selections: | Only one device at a time can be edited. | |||
Editing the SystemDesigner Constant
To configure the SystemDesigner Constant, follow these steps:

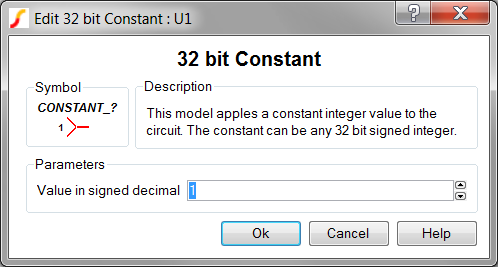

- Double click the symbol on the schematic to open the editing dialog to the Parameters tab.
- Make the appropriate changes to the fields described in the table below the image.
| Label | Parameter Description |
| Value in signed decimal | The constant value. This value can represent any signed integer from -2147483647 to 2147483648. |
Examples
The SystemDesigner constant is used in numerous examples:
