Jitter Function

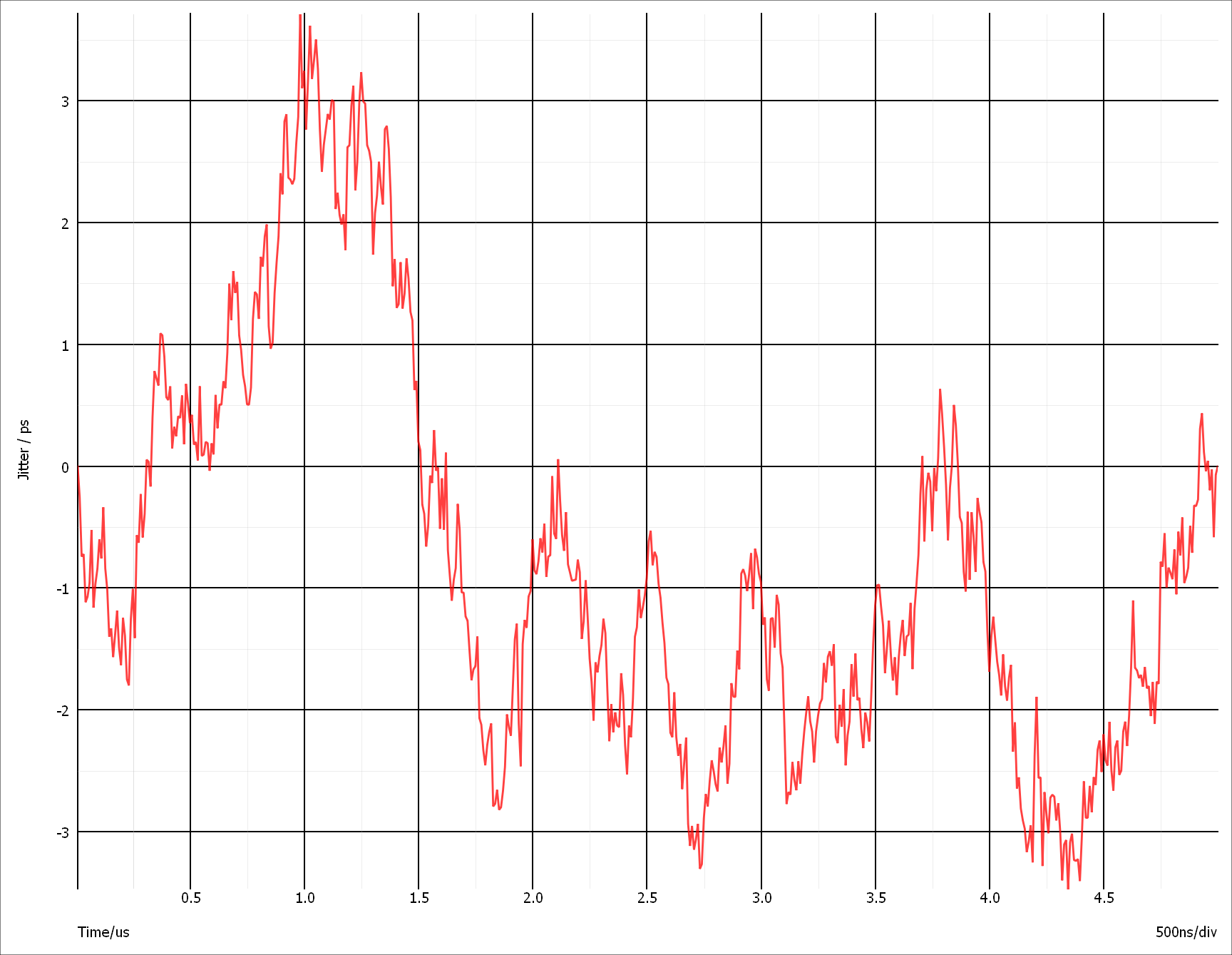

Calculates clock jitter. Input signal should be a repetitive waveform. The threshold value defines the crossing point. Result will be a vector with length equal to the number of rising edge threshold crossings detected. Each value will be the deviation of the crossing time compared to ideal signal of the same frequency with zero phase jitter.

Arguments

Number	Type	Compulsory	Default	Description
1	Real vector	Yes		Input data
2	Real	Yes		Threshold

Argument 1

Input data

Argument 2

Threshold

Returns

Return type: Real vector

Jitter values
