Pulse Load - Single Pure Current Pulse

The Pulse Load - Single Pure Current Pulse subcircuit models a single pulse without a resistive load. For a single current pulse load with a resistive component, see the Pulse Load - Single Current Pulse. In DVM, this load is not used in any test objectives, but you can set any managed DVM load to use this subcircuit with a PulsePure() call in the Load column of your testplan.

In this topic:

  DVM Information Power Supply (Non-DVM) Information
Model Name Pulse Load - Single Current Pulse
Simulator
Parts Selector
Menu Location
  • DVM > Loads > DVM Output Load - 2 Terminal
  • DVM > Loads > DVM Output Load - 3 Terminal
  • DVM > Loads > DVM Output Load - 4 Terminal
Power Supply Loads > Power Supply Load ( DC Current, Pulse, Bode, Zout... )
Symbol Library SIMPLIS_DVM_ADVANCED.sxslb power_supply_source_and_loads.sxslb
Model File SIMPLIS_DVM_ADVANCED.lb power_supply_source_and_loads.lb
Subcircuit Name
  • SIMPLIS_DVM_ADVANCED_LOAD_2T_PULSE_PURE
  • SIMPLIS_DVM_ADVANCED_LOAD_3T_PULSE_PURE
  • SIMPLIS_DVM_ADVANCED_LOAD_4T_PULSE_PURE
POWER_SUPPLY_LOAD_PULSE_PURE
Symbols

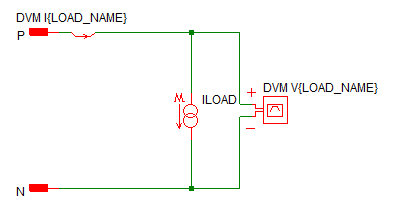

Schematic - 2 Terminal
Note: Power Supply probes will not have the "DVM" prefix.

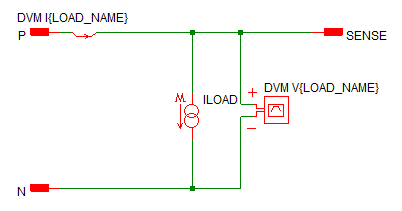

Schematic - 3 Terminal
Note: Power Supply probes will not have the "DVM" prefix.

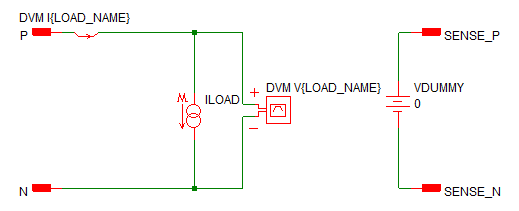

Schematic - 4 Terminal
Note: Power Supply probes will not have the "DVM" prefix.

Pulse Load - Single Pure Current Pulse Parameters

The table below explains the parameters used in the Pulse Load - Single Pure Current Pulse subcircuit.

Parameter Name Default Data Type Range Units Parameter Description
FALL_TIME 50u Real min: 0 s The pulse fall time in seconds
FINAL_CURRENT 750m Real min: 0 A The final current for the load. The Pulse Load - Single Pure Current Pulse continues at this current for all simulation times greater tha TIME_DELAY+RISE_TIME. This can be a numeric value or a symbolic value, such as a percentage of full load.
LOAD_NAME LOAD String n/a n/a Name of the DVM load. This name cannot contain spaces.
PULSE_CURRENT 250m Real min: 0 A The pulsed current in amps. The pulse current can be a numeric value or a symbolic value, such as a percentage of full load.
PULSE_WIDTH 200u Real min: 0 s The pulse width in seconds. Note that DVM considers the pulse width to be the duration of the pulse at the PULSE_CURRENT.
RISE_TIME 100u Real min: 0 s The pulse rise time in seconds
START_CURRENT 0 Real min: 0 A The starting current for the load. This can be a numeric value or a symbolic value, such as a percentage of full load.
TIME_DELAY 10u Real min: 0 s The time delay before the pulse initiates

DVM Testplan Entry for the Pulse Load - Single Pure Current Pulse

To set any managed DVM load to a Pulse Load - Single Pure Current Pulse subcircuit, place a PulsePure() testplan entry in the Load column.

The PulsePure() testplan entry has the following syntax with the arguments explained in the table below.

PulsePure(REF, START_CURRENT, PULSE_CURRENT, FINAL_CURRENT)
PulsePure(REF, START_CURRENT, PULSE_CURRENT, FINAL_CURRENT, OPTIONAL_PARAMETER_STRING)

where:

Argument Range Description
REF n/a The actual reference designator of the DVM load or the more generic syntax of OUTPUT:n where n is an integer indicating a position in the list of DVM loads
START_CURRENT min: 0 The starting current for the load. This can be a numeric value or a symbolic value, such as a percentage of full load.
PULSE_CURRENT min: 0 The pulse current for the load. This can be a numeric value or a symbolic value, such as a percentage of full load.
FINAL_CURRENT min: 0 The final current for the load. This can be a numeric value or a symbolic value, such as a percentage of full load.
OPTIONAL_PARAMETER_STRING n/a

Parameter string with a combination of one or more timing parameters:

  • TIME_DELAY*
  • RISE_TIME*
  • PULSE_WIDTH*
  • FALL_TIME*

*    If more than one parameter is specified, join the parameter key-value pairs with a space, as shown in the example below. The order of the parameter names does not matter.

Timing

The timing for the Pulse Pure Load is determined by the following parameters.

  • TIME_DELAY
  • RISE_TIME
  • PULSE_WIDTH
  • FALL_TIME

Timing parameters can be assigned using the optional parameter string as shown in the following examples.

Symmetric Pulse DVM Example

This example shows a symmetric pulse with equal rise and fall times. The final current is the same as the starting current.

Note: In the following testplans, the Load column is prefaced with the characters *?@ because it is the first column in the testplan.
*?@ Load
PulsePure(OUTPUT:1, 1, 5, 1, TIME_DELAY=25u RISE_TIME=25u PULSE_WIDTH=100u FALL_TIME=25u)

The results of this testplan entry are shown below:

Annotation Value
X0 TIME_DELAY
X1 TIME_DELAY + RISE_TIME
X2 TIME_DELAY + RISE_TIME + PULSE_WIDTH
X3 TIME_DELAY + RISE_TIME + PULSE_WIDTH + FALL_TIME
Y0 START_CURRENT
Y1 PULSE_CURRENT
Y2 PULSE_CURRENT
Y3 FINAL_CURRENT

Asymmetric Pulse DVM Example

The following example sets the first DVM managed load to a Pulse Load - Single Pure Current Pulse, with a starting current of 1A, a pulse current of 5A and a final current of 4.5A. Note the rise and fall times are not the same and the pulse does not have to return to the starting current value.

Note: In the following testplans, the Load column is prefaced with the characters *?@ because it is the first column in the testplan.
*?@ Load
PulsePure(OUTPUT:1, 1, 5, 4.5, TIME_DELAY=25u RISE_TIME=25u PULSE_WIDTH=75u FALL_TIME=50u)

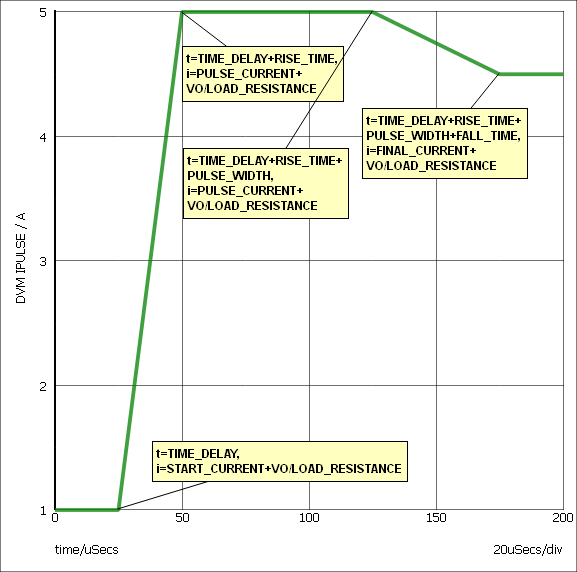

The results of this testplan entry are shown below:

Annotation Value
X0 TIME_DELAY
X1 TIME_DELAY + RISE_TIME
X2 TIME_DELAY + RISE_TIME + PULSE_WIDTH
X3 TIME_DELAY + RISE_TIME + PULSE_WIDTH + FALL_TIME
Y0 START_CURRENT
Y1 PULSE_CURRENT
Y2 PULSE_CURRENT
Y3 FINAL_CURRENT
