The sole purpose of the FindAcSteadyState() test is to capture and save the initial steady-state conditions in a .init file for use in other simulations.
This test objective measures the following scalar values:
In this topic:
The FindAcSteadyState() function has the following syntax with the arguments described in the table below:
FindAcSteadyState(REF, LINE_RANGE, VOLTAGE, FREQUENCY, ENABLED_FLAG) FindAcSteadyState(REF, LINE_RANGE, VOLTAGE, FREQUENCY, ENABLED_FLAG, OPTIONAL_PARAMETER_STRING)
Argument | Range | Description |
REF | n/a | The actual reference designator of the DVM Source or the generic syntax of INPUT:n where n is an integer indicating a position in the list of DVM sources. |
LINE_RANGE | LL or HL | The line range to select the correct symbolic voltage value. This can only be the two strings LL or HL. |
VOLTAGE | min:0 | The RMS voltage for the input source. The voltage can be a numeric value or a symbolic value, such as a percentage of nominal input voltage. Symbolic values use the LINE_RANGE parameter to find the correct symbolic value. |
FREQUENCY | min: > 0 | The AC line frequency of the input source. This is used to both set the frequency of the input source and to set the simulation timing. The frequency can be a numeric or a symbolic value, such as F_High or F_Low. |
ENABLED_FLAG | Enabled or Disabled | DVM uses a control source to turn on the converter during a ControlStartup() test objective. If this argument is set to Enabled, the control source is set to a DC source with the "on" voltage. Likewise, if this argument is set to Disabled, the source is set to the "off" voltage. |
OPTIONAL_PARAMETER_STRING | n/a | Parameter string with a combination of one or
more timing parameters:
|
parameter_name1=parameter_value1 parameter_name2=parameter_value2The order of the parameter key-value pairs does not matter.

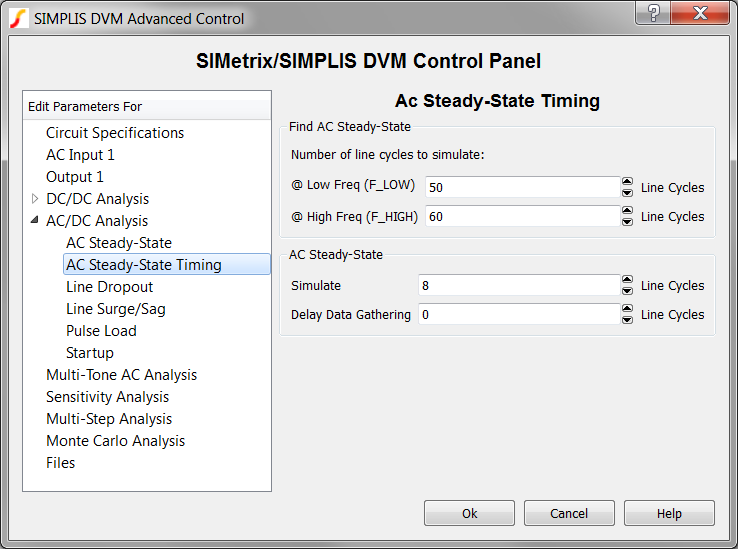

DVM sets the timing parameters for the FindAcSteadyState() test objective based on values that you enter on the Steady-State/Simulation Timing tab of the Full Power Assist DVM control symbol. The two simulation times are:
For the low symbolic frequency:
\[ \text{STOP_TIME} = \frac{\text{@ Low Freq (F_LOW)}}{\text{FREQUENCY}}\]
For the high symbolic frequency:
\[ \text{STOP_TIME} = \frac{\text{@ High Freq (F_HIGH)}}{\text{FREQUENCY}}\]
By default the simulation captures 2 full cycles of the line frequency:
\[ \text{DATA_START_TIME} = \text{STOP_TIME}-\frac{2}{\text{FREQUENCY}}\]
The FindAcSteadyState() test objective sets the source and load subcircuits to the following:
Source | Control Source (if used) | Load |
AC Fixed Input Source | DC Auxiliary Source | Resistive Load |
Loads other than the output under test are set to the Resistive Load. All other sources are set to either the DC Input Source for DC sources or the AC Fixed Input Source for the AC input sources.
The FindAcSteadyState() test objective measures the following scalar values where {load_name} is the name assigned to each load, and {source_name} is the name assigned to each source.
Scalar Name | Description |
Frequency({source_name}) | A number which represents the line frequency. |
V{load_name}%_diff_last_2_linecycles | The percent change in the output voltage when averaged over the last two line cycles. |
V{load_name} At Simulation Start Time | The output voltage taken at time=0. |
V{load_name} Last LineCycle | The average value of the output voltage during the last line cycle in the simulation. Used for the V{load_name}%_diff_last_2_linecycles calculation. |
V{load_name} Previous LineCycle | The average value of the output voltage during the second to the last line cycle in the simulation. Used for the V{load_name}%_diff_last_2_linecycles calculation. |
I{load_name} | Minimum and Maximum values of the load current. |
V{load_name} | Minimum and Maximum values of the load voltage. |
I{source_name} | Minimum and Maximum values of the source current. |
V{source_name} | Minimum, Maximum, and RMS values of the source voltage. |
In the following table, {load_name} is the name assigned to each load. The default value is LOAD. DVM forces each load name to be unique so that the scalar and specification values for each load are unique.
Scalar Name | PASS/FAIL Criteria |
AC_Settling({load_name}) | The percentage change in the output load voltage over the final two line frequency cycles is less than the maximum specification value. |
Max_V{load_name} | The maximum value of the output during the simulation time is less than the maximum specification value. |
The FindAcSteadyState() test objective is used in the built-in AC/DC testplans. Shown below is a single FindAcSteadyState() test from the AC/DC (1-input/1-output) testplan. This test configures the load to the 100% load symbolic value, and the input source to the HL Maximum symbolic value, and the line frequency to the F_Low symbolic value. The output load symbolic values are defined on the Output page, and the AC source symbolic parameters are defined on the AC Input page of the Full Power Assist DVM control symbol.
*?@ Analysis | Objective | Source | Load | Label | GenerateInitFile | IncludeInitFile |
Transient | FindAcSteadyState(INPUT:1, HL, Maximum, F_Low, Enabled) | LOAD(OUTPUT:1,100%) | Transient|FindACSteadyState|HL_Maximum|F_Low|Enabled|100% Load | INITFILE_HL_Maximum_F_Low_100% Load |
The following FindAcSteadyState() test objective uses the OPTIONAL_PARAMETER_STRING argument to set the simulation stop time to 500ms (25 cycles@50Hz) and to capture 5 line cycles of simulation data.
FindAcSteadyState(INPUT:1, HL, Maximum, F_Low, Enabled, NCYCLES_STOP=25 NCYCLES_CAPTURE=5)
You can view the complete test report in a new browser window here: FindAcSteadyState() Test Report. Below is an interactive link to the same test report.
