Cosine Waveform Source

The Cosine Waveform Source subcircuit models a time-varying source with a cosinusoidal voltage. At time=0, the source begins at the FINAL_VOLTAGE value and has a cosine function. In DVM, the Cosine Waveform Source is not used in any test objectives, but you can change any source to a cosine source with a Cos() function call in a Source column.

Other similar sources include:

  • Sine Source - similar to the Cosine Waveform Source but with a sine function.

In this topic:

  DVM Information Power Supply (Non-DVM) Information
Model Name Cosine Waveform Source
Simulator
Parts Selector
Menu Location
DVM > Sources > DVM Input Source Power Supply Sources > Power Supply Source ( DC Voltage, Pulse, Ramp, Zin... )
Symbol Library SIMPLIS_DVM_ADVANCED.sxslb power_supply_source_and_loads.sxslb
Model File SIMPLIS_DVM_ADVANCED.lb power_supply_source_and_loads.lb
Subcircuit Name SIMPLIS_DVM_ADVANCED_SOURCE_COS POWER_SUPPLY_SOURCE_COS

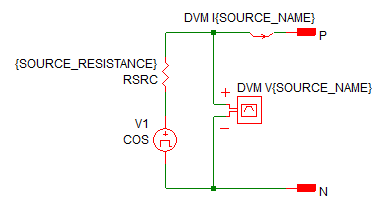

Symbols
Schematic
Note: Power Supply probes will not have the "DVM" prefix.

Parameters

The following table explains the relevant parameters.

Parameter Name Default Data Type Range Units Parameter Description
COEFFICIENT 0 Real     The damping coefficient for the cosinusoidal source voltage. If non-zero, the cosinusoidal source voltage amplitude will decay with a time constant equal to ???MATH???\frac{1}{\text{COEFFICIENT}}???MATH???.
FINAL_VOLTAGE 750m Real   V The peak to peak voltage for the source. This can be a numeric value or a symbolic value, such as a percentage of nominal input voltage.
FREQUENCY 10k Real min: > 0 Hz The frequency of the cosine waveform source
IDLE_IN_POP 0 Real 0 or 1   If set to 0, the source voltage during the POP analysis is set to the peak value of the source which is ???MATH???\frac{1}{2}\times\(text{FINAL_VOLTAGE}+\text{START_VOLTAGE}???MATH???; otherwise, the source will be active during the POP analysis.
SOURCE_NAME SRC String n/a n/a Name of the DVM source. This name cannot contain spaces.
SOURCE_RESISTANCE 0.4 Real min:0 Sets the source resistance of the source
OFF_UNTIL_DELAY 0 Real 0 or 1   If set to 1, the source voltage will be START_VOLTAGE until the time specified by TIME_DELAY. If set to 0, the value of TIME_DELAY is interpreted as a phase delay.
PHASE_ANGLE 90 Real   ° The phase angle of the cosinusoidal waveform, used only if the USE_PHASE parameter is 1.
START_VOLTAGE 0 Real   V The minimum or starting voltage for the cosine waveform source. This can be a numeric value or a symbolic value, such as a percentage of nominal input voltage.
TIME_DELAY 10u Real min: 0 s The delay before the cosinusoid starts. The source behavior before the TIME_DELAY is determined by the OFF_UNTIL_DELAY parameter.
USE_PHASE 0 Real 0 or 1   If set to 1, the source is configured to use the phase angle supplied by the PHASE_ANGLE parameter.

DVM Testplan Entry

To set any managed DVM source to a Cosine Waveform Source subcircuit, place a Cos() testplan entry in a Source column.

The Cos()  testplan entry has the following syntax with the arguments taken from the list of parameters above.

Cos(REF, START_VOLTAGE, FINAL_VOLTAGE, FREQUENCY)
Cos(REF, START_VOLTAGE, FINAL_VOLTAGE, FREQUENCY, OPTIONAL_PARAMETER_STRING)
Argument Range Description
REF n/a The actual reference designator of the DVM source or the more generic syntax of INPUT:n where n is an integer indicating a position in the list of DVM sources
START_VOLTAGE n/a The minimum or starting voltage for the cosine waveform source. This can be a numeric value or a symbolic value, such as a percentage of nominal input voltage.
FINAL_VOLTAGE n/a The peak or maximum voltage for the cosine wave source. This can be a numeric value or a symbolic value, such as a percentage of nominal input voltage.
FREQUENCY min: > 0 The frequency of the cosine waveform source.
OPTIONAL_PARAMETER_STRING n/a Parameter string with any of the other parameters from the parameter table above*

*    If multiple parameters are specified, join the parameter key-value pairs with a space, as shown in the examples below. The order of the parameter names does not matter.

DVM Examples

The following examples set the first DVM managed source to a Cosine Waveform Source with a starting voltage of 2V and a peak-to-peak voltage of 4V. The timing parameters and the optional parameter strings are different for each example.

Note: In the following testplans, the Source column is prefaced with the characters *?@ because it is the first column in the testplan.

Zero Time Delay Example

Since the TIME_DELAY parameter is set to zero, the waveform begins with the START_VOLTAGE + FINAL_VOLTAGE divided by 2 at t=0.

*?@ Source
Cos(INPUT:1 , 2 , 4 , 10k , TIME_DELAY=0u)

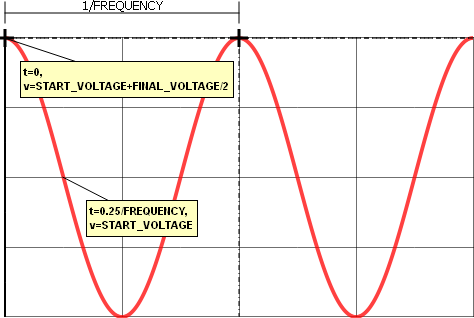

The results of this testplan entry are shown below:

Time Delay Example

In this example, the TIME_DELAY parameter is set to 60μs. Since the OFF_UNTIL_DELAY parameter is not specified, the TIME_DELAY is interpreted as a phase delay, meaning that the waveform is active from time=0.

*?@ Source
Sin(INPUT:1 , 2 , 4 , 10k , TIME_DELAY=60u)

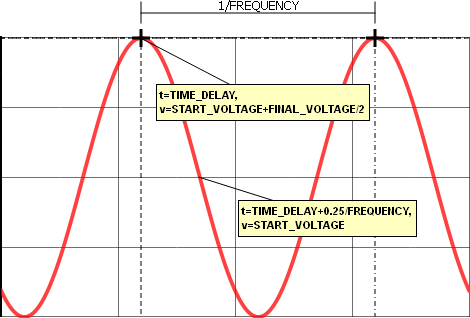

The results of this testplan entry are shown below:

Time Delay Example With OFF_UNTIL_DELAY=1

In this example the TIME_DELAY parameter is set to 60us, and the OFF_UNTIL_DELAY is set to 1; therefore, for simulation times less than the TIME_DELAY parameter, the source voltage is 2V, which is the value of the START_VOLTAGE argument.

*?@ Source
Cos(INPUT:1 , 2 , 4 , 10k , OFF_UNTIL_DELAY=1 TIME_DELAY=60u)

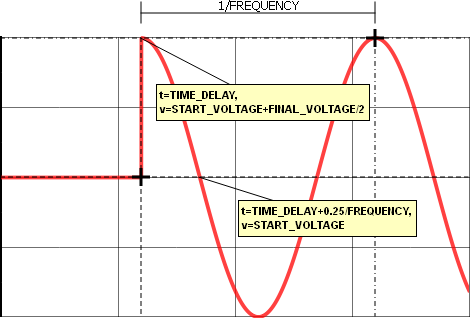

The results of this testplan entry are shown below:

Phase Delay Example

In this example, the USE_PHASE parameter is set to 1, and the PHASE_ANGLE parameter is set to 60. Setting USE_PHASE to 1 configures the source to use the PHASE_ANGLE parameter to determine the effective time delay. The time delay is calculated by:

\[ \text{TIME_DELAY} = \frac{\text{PHASE_ANGLE}}{\text{360*FREQUENCY}} \]

*?@ Source
Cos(INPUT:1 , 2 , 4 , 10k , USE_PHASE=1 PHASE_ANGLE=60)

The results of this testplan entry are shown below:

Phase Delay Example With OFF_UNTIL_DELAY=1

In this example the PHASE_ANGLE parameter is set to 60, and the OFF_UNTIL_DELAY is set to 1; therefore, for simulation times less than the time delay defined by the PHASE_ANGLE parameter, the source voltage is 2V, which is the value of the START_VOLTAGE argument.

*?@ Source
Cos(INPUT:1 , 2 , 4 , 10k , OFF_UNTIL_DELAY=1 USE_PHASE=1 PHASE_ANGLE=60)

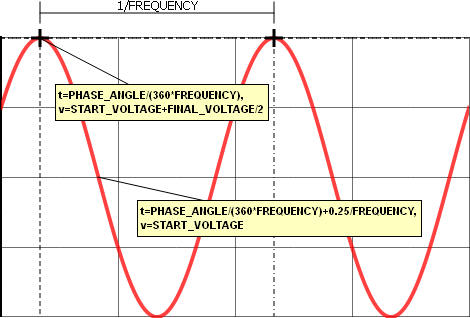

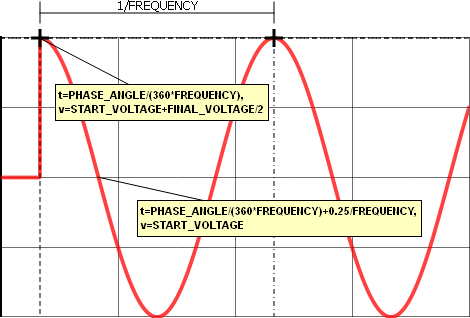

The results of this testplan entry are shown below:

Converting between DVM and Power Supply Sources

To change a Power Supply source to a DVM source, right click the symbol to bring up the context menu, and select the menu option: Upgrade to DVM Source/Load

To change a DVM source to a Power Supply source, right click the symbol to bring up the context menu, and select the menu option: Downgrade to SIMetrix/SIMPLIS Source/Load
