Pulse Source - Repeating Pulse w/ Zero Rise and Fall Times

The Pulse Source - Repeating Pure Voltage Pulse w/ Zero Rise and Fall Times subcircuit models a repeating pulsed voltage source with zero rise and fall times. This source is not used in any test objectives, but you can set a source to use this subcircuit with a PulZRFT() call in the Source column of your testplan.

Other similar pulsed voltage sources include:

In this topic:

  DVM Information Power Supply (Non-DVM) Information
Model Name Pulse Source - Single Voltage Pulse
Simulator
Parts Selector
Menu Location
DVM > Sources > DVM Input Source Power Supply Sources > Power Supply Source ( DC Voltage, Pulse, Ramp, Zin... )
Symbol Library SIMPLIS_DVM_ADVANCED.sxslb power_supply_source_and_loads.sxslb
Model File SIMPLIS_DVM_ADVANCED.lb power_supply_source_and_loads.lb
Subcircuit Name SIMPLIS_DVM_ADVANCED_SOURCE_PUL_ZRFT POWER_SUPPLY_SOURCE_PUL_ZRFT
Symbols

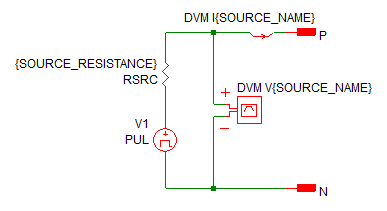

Schematic
Note: Power Supply probes will not have the "DVM" prefix.

Pulse Source - Single Voltage Pulse w/ Zero Rise and Fall Times Parameters

The following table explains the relevant parameters.

Parameter Name Default Data Type Range Units Parameter Description
DRATIO 0.5 Real 0 ~ 1   The duty ratio of the source voltage pulses
FINAL_VOLTAGE 750m Real   V The pulse or final voltage for the source pulses
FREQUENCY 10k Real min: > 0 Hz The frequency of the source pulse
IDLE_IN_POP 0 Real 0 or 1   If set to 0, the source voltage during the POP analysis is set to the START_VOLTAGE; otherwise the source will be active during the POP analysis.
SOURCE_NAME SRC String n/a n/a Name of the DVM source. This name cannot contain spaces.
SOURCE_RESISTANCE 0.4 Real min:0 Sets the source resistance of the source
OFF_UNTIL_DELAY 0 Real 0 or 1   If set to 1, the source voltage will be the START_VOLTAGE until the time specified by TIME_DELAY. If set to 0, the value of TIME_DELAY is interpreted as a phase delay.
PHASE_ANGLE 90 Real   ° The phase angle of the voltage pulse, used only if the USE_PHASE parameter is 1.
START_VOLTAGE 0 Real   V The lower ot starting voltage for the source voltage pulse.
TIME_DELAY 10u Real min: 0 s The delay before the source voltage pulse starts. The source behavior before the TIME_DELAY is determined by the OFF_UNTIL_DELAY parameter.
USE_PHASE 0 Real 0 or 1   If set to 1, the source is configured to use the phase angle supplied by the PHASE_ANGLE parameter.

DVM Testplan Entry for the Repeating Pure Voltage Pulse w/ Zero Rise and Fall Times Source

To set any managed DVM source to a Repeating Pure Voltage Pulse w/ Zero Rise and Fall Times Source subcircuit, place a PulZrft() testplan entry in the Source column.

The PulZrft() testplan entry has the following syntax with the arguments taken from the list of Pulse Source - Single Voltage Pulse w/ Zero Rise and Fall Times Parameters above.

PulZrft(REF, START_VOLTAGE, FINAL_VOLTAGE, FREQUENCY, DRATIO)
PulZrft(REF, START_VOLTAGE, FINAL_VOLTAGE, FREQUENCY, DRATIO, OPTIONAL_PARAMETER_STRING)
Argument Range Description
REF n/a The actual reference designator of the DVM source or the more generic syntax of INPUT:n where n is an integer indicating a position in the list of DVM sources
START_VOLTAGE n/a The lower or starting voltage for the source voltage pulse. This can be a numeric value or a symbolic value, such as a percentage of nominal input voltage.
FINAL_VOLTAGE n/a The pulse or final voltage for the source pulse. This can be a numeric value or a symbolic value, such as a percentage of nominal input voltage.
FREQUENCY min: > 0 The frequency of the source pulse
DRATIO 0 ~ 1 The duty ratio of the source voltage pulses
OPTIONAL_PARAMETER_STRING n/a Parameter string with any of the other parameters from the parameter table above*

*    If multiple parameters are specified, join the parameter key-value pairs with a space, as shown in the examples below. The order of the parameter names does not matter.

DVM Examples

The following examples set the first DVM managed source to a Repeating Pure Voltage Pulse w/ Zero Rise and Fall Times Source with a starting voltage of 1V and a final voltage of 5V. The timing parameters and the optional parameter strings are different for each example.

Note: In the following testplans, the Source column is prefaced with the characters *?@ because it is the first column in the testplan.

Zero Time Delay Example

Since the TIME_DELAY parameter is set to zero, the waveform begins with the FINAL_VOLTAGE value of 5 at t=0.

*?@ Source
Pul_Zrft(INPUT:1 , 1 , 5 , 10k , 0.3 , TIME_DELAY=0)

The results of this testplan entry are shown below:

Time Delay Example

In this example, the TIME_DELAY parameter is set to 75μs. Since the OFF_UNTIL_DELAY parameter is not specified, the TIME_DELAY is interpreted as a phase delay, meaning that the waveform is active from time=0.

*?@ Source
Pul_ZRFT(INPUT:1 , 1 , 5 , 10k , 0.3 , TIME_DELAY=75u)

The results of this testplan entry are shown below:

Time Delay Example With OFF_UNTIL_DELAY=1

In this example the TIME_DELAY parameter is set to 75μs, and the OFF_UNTIL_DELAY is set to 1; therefore, for simulation times less than the TIME_DELAY parameter, the source voltage is 1V, which is the value of the START_VOLTAGE argument.

*?@ Source
Pul_ZRFT(INPUT:1 , 1 , 5 , 10k , 0.3 , OFF_UNTIL_DELAY=1 TIME_DELAY=75u)

The results of this testplan entry are shown below:

Phase Delay Example

In this example, the USE_PHASE parameter is set to 1, and the PHASE_ANGLE parameter is set to 270. Setting USE_PHASE to 1 configures the source to use the PHASE_ANGLE parameter to determine the effective time delay. The time delay is calculated by:

\[ \text{TIME_DELAY} = \frac{\text{PHASE_ANGLE}}{\text{360*FREQUENCY}} \]

*?@ Source
Pul_ZRFT(INPUT:1 , 1 , 5 , 10k , 0.3 , USE_PHASE=1 PHASE_ANGLE=270)

The results of this testplan entry are shown below:

Phase Delay Example With OFF_UNTIL_DELAY=1

In this example the PHASE_ANGLE parameter is set to 270, and the OFF_UNTIL_DELAY is set to 1; therefore, for simulation times less than the time delay defined by the PHASE_ANGLE parameter, the source voltage is 1V, which is the value of the START_VOLTAGE argument.

*?@ Source
Pul_ZRFT(INPUT:1 , 1 , 5 , 10k , 0.3 , OFF_UNTIL_DELAY=1 USE_PHASE=1 PHASE_ANGLE=270)

The results of this testplan entry are shown below:

Converting between DVM and Power Supply Sources

To change a Power Supply source to a DVM source, right click the symbol to bring up the context menu, and select the menu option: Upgrade to DVM Source/Load

To change a DVM source to a Power Supply source, right click the symbol to bring up the context menu, and select the menu option: Downgrade to SIMetrix/SIMPLIS Source/Load
